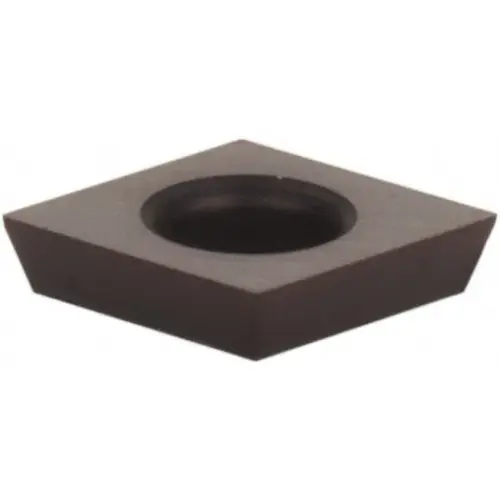

Kennametal 4050607 Turning Insert: CDHBS4T0S0 KCU25, Solid Carbide AlTiN

Item #: 4050607 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$34.68

/each
SAVE UP TO 3.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 42 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0528

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.1563

Insert Shape

Diamond

Rake Angle

0

Secondary Workpiece Material Code

K

Insert Style

CDHB

Insert Size Code

1206

Hole Diameter (Decimal Inch)

0.0840

Relief Angle

15

Inscribed Circle (Inch)

5/32

Manufacturer Grade

KCU25

Width (Decimal Inch - 4 Decimals)

0.1563

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C2

Manufacturers Catalog Number

4050607

Length (Decimal Inch - 4 Decimals)

0.1587

Corner Radius (Decimal Inch)

0.0020

Coating/Finish

AlTiN

Coating Process

PVD

Series

Screw-On

Insert Material

Carbide

Included Angle

80

Chipbreaker

Flat Top

Standards

ANSI

Number of Cutting Edges

2

Product Overview
Turning Insert: CDHBS4T0S0 KCU25, Solid Carbide AlTiN Coated, Neutral, 5/32" Inscribed Circle, 0.002" Corner Radius, 80 degree Diamond
