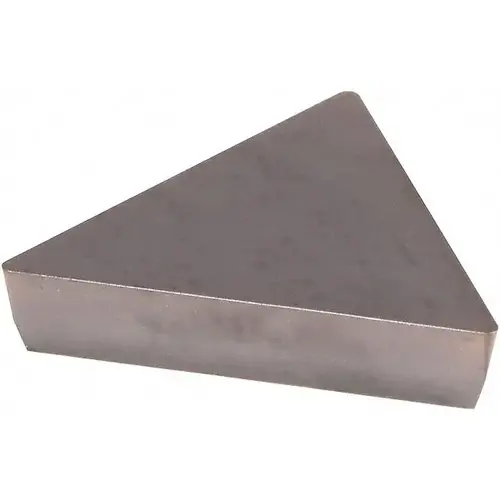

Kennametal 4050774 Turning Insert: TPG321 KCU10, Solid Carbide TiAlN
Item #: 4050774 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
3
Standards
ANSI
Included Angle
60
Insert Material
Carbide
Series
KENDEX
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0156
Manufacturers Catalog Number
4050774
Material Grade
C3
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6495
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6495
Insert Thickness (Decimal Inch)
0.1250
Insert Thickness (Inch)
1/8
Maximum Depth of Cut (Decimal Inch)
0.2163
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Insert Length (mm)
16.50
Corner Radius (Inch)
1/64
Insert Shape
Triangle
Clearance Code
P
Rake Angle
0
Full Radius
No
Insert Shape Code
T
Chip Breaker
Flat Top
Insert Style
TPG
Insert Size Code
321
Tolerance Code
G
Relief Angle
11
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Manufacturer Grade
KCU10
Length Range (Decimal Inch)
0.6000 - 0.6500
Iso Code
TPGN160304
Product Overview
Turning Insert: TPG321 KCU10, Solid Carbide AlTiN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series KENDEX
