Screw Machine Length Drill Bit: 4.00 mm Dia, 135 deg Point, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

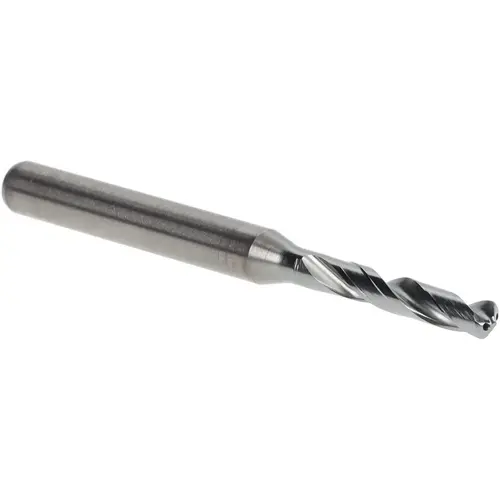

Kennametal 4051972 Screw Machine Length Drill Bit: 4.00 mm Dia, 135 deg Point, Solid Carbide

Item #: 4051972 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$177.89

/each
SAVE UP TO 17.79
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

66.00

Number of Flutes

2

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

B254A-YPC

Point Type

Standard

Drill Length Type

Stub

Spiral Type

Regular

Coating/Finish

Multi-layer

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.1575

Drill Bit Size (mm)

4.00

Drill Bit Size Range (Decimal Inch)

0.1500 to 0.2000

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.9449

Flute Length (mm)

24.00

Maximum Drilling Depth (Decimal Inch)

0.6693

Overall Length (Decimal Inch)

2.5984

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Shank Length (Decimal Inch)

1.4173

Shank Length (mm)

36.00

UNSPSC Code

23241635

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Bit Size Range (mm)

3.50 - 5.00

Drill Point Angle

135

Maximum Drilling Depth (mm)

17.00

Proprietary Coating/Finish

Multilayer AlCr

Specification Designation

DIN

Specification Number

DIN 6535

Web Configuration

Tapered

Drill Point Length (mm)

1.12

Drill Point Length (Decimal Inch)

0.0441

Product Overview
Screw Machine Length Drill Bit: 4.00 mm Dia, 135 deg Point, Solid Carbide Multilayer AlCr Coated, 66.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series B254A-YPC
