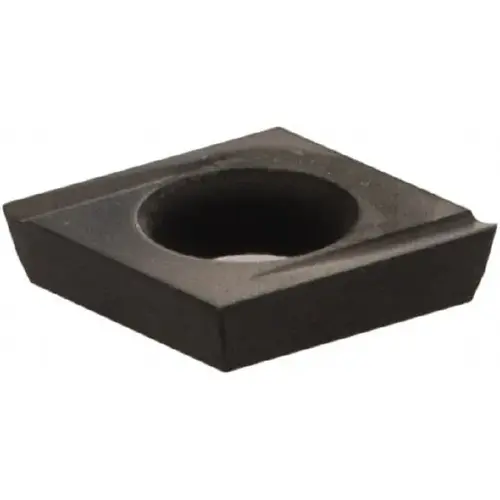

Turning Insert: CDHH120605L KCU10, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 4053325 Turning Insert: CDHH120605L KCU10, Solid Carbide TiAlN

Item #: 4053325 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$25.81

/each
SAVE UP TO 2.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 91 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

4.30

Number of Cutting Edges

2

Standards

ANSI

Chipbreaker

Common

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0079

Length (Decimal Inch - 4 Decimals)

0.1587

Manufacturers Catalog Number

4053325

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.1563

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0528

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.1563

Corner Radius (Inch)

1/128

Insert Shape

Diamond

Insert Style

CDHH

Insert Size Code

120605

Hole Diameter (Decimal Inch)

0.0840

Relief Angle

15

Inscribed Circle (Inch)

5/32

Hole Diameter (Mm) ( - 0 Decimals)

2.13

Manufacturer Grade

KCU10

Iso Code

CDHHS4T002L

Product Overview
Turning Insert: CDHH120605L KCU10, Solid Carbide AlTiN Coated, Left Hand, 4.03 mm Long, 5/32" Inscribed Circle, 0.007" Corner Radius, 80 degree Diamond, Series Screw-On
