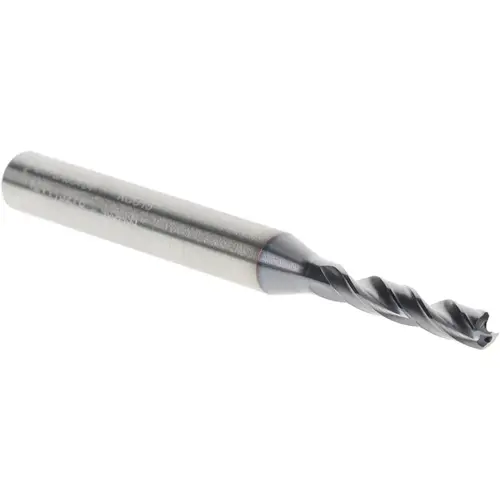

Kennametal 4054495 Screw Machine Length Drill Bit: Size #29, 140 deg Point, Solid Carbide TiAlN

Item #: 4054495 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$133.39

/each
SAVE UP TO 13.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

62.00

Number of Flutes

2

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

B976A

Point Type

Standard

Drill Length Type

Stub

Spiral Type

Regular

Coating/Finish

TiAlN

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.1360

Drill Bit Size (Wire)

#29

Drill Bit Size Range (Decimal Inch)

0.1000 to 0.1500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.7874

Flute Length (mm)

20.00

Maximum Drilling Depth (Decimal Inch)

0.5512

Overall Length (Decimal Inch)

2.4409

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Shank Length (Decimal Inch)

1.4173

Shank Length (mm)

36.00

UNSPSC Code

23241635

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Point Angle

140

Maximum Drilling Depth (mm)

14.00

Proprietary Coating/Finish

TiAlN

Specification Designation

DIN

Specification Number

DIN 6537K

Web Configuration

Tapered

Drill Point Length (mm)

0.56

Drill Point Length (Decimal Inch)

0.0221

Product Overview
Screw Machine Length Drill Bit: Size #29, 140 deg Point, Solid Carbide Multilayer TiAlN Coated, 62.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series B976A
