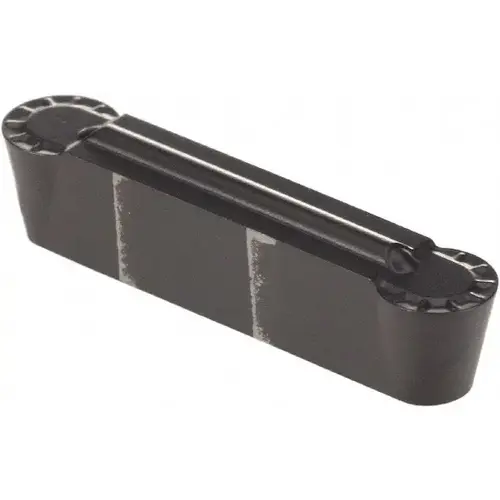

Grooving Insert: R0505GMN KCU25, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 4114350-XCP10 Grooving Insert: R0505GMN KCU25, Solid Carbide - pack of 10

Item #: 4114350-XCP10 by Kennametal

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Overall Length (mm)

25.15

Cutting Height (mm)

5.72

Cutting Width (mm)

5.05

Corner Radius (mm)

2.52

Maximum Depth Of Cut Range (mm)

4.00 to 5.00

Insert Seat Size

5

Maximum Depth Of Cut Range (Decimal Inch)

0.1500 to 0.2000

Manufacturer Grade

KCU25

Cutting Height (Decimal Inch)

0.2250

Maximum Depth of Cut (mm)

4.09

Insert Style

R

Chip Breaker

GMN

Full Radius

Yes

Insert Hand

Neutral

Single Or Double End

Double

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.1614

Cutting Width (Decimal Inch)

0.1988

Vendor Drop Ship

Y

Overall Length (Decimal Inch)

0.9900

Material Grade

C2

Manufacturers Catalog Number

A4R0505M05U00GMN

Corner Radius (Decimal Inch)

0.0994

Coating/Finish

AlTiN

Coating Process

PVD

Series

A4

Insert Material

Solid Carbide

Product Overview
Grooving Insert: R0505GMN KCU25, Solid Carbide AlTiN Finish, Neutral, 5.05 mm Cutting Width, 4.09 mm Max Depth, Series A4
