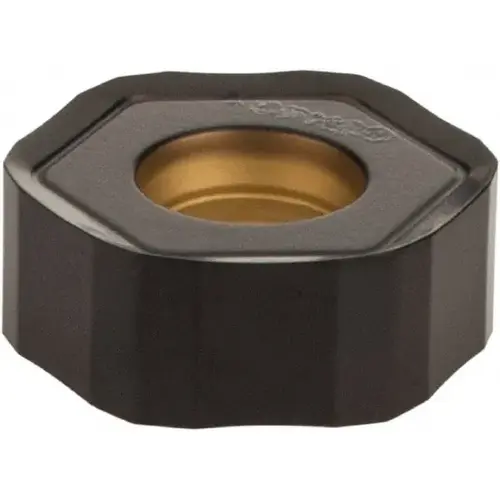

Kennametal 4119698 Milling Insert: HNPJ0604ANSNGD, KCPM20, Solid Carbide TiN
Item #: 4119698 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed T-Land
Material Application
Steel
ANSI Code
HNPJ43ANSNGD
Number of Cutting Edges
12
Standards
ANSI
Insert Material
Solid Carbide
Series
HNPJ
Coating Process
MTCVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.0394
Length (Decimal Inch - 4 Decimals)
0.4724
Manufacturers Catalog Number
HNPJ0604ANSNGD
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1750
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4724
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.2536
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.4724
Insert Shape
Hexagon
Rake Angle
15
Chip Breaker
GD
Insert Style
HNPJ
Insert Size Code
43
Hole Diameter (Decimal Inch)
0.1969
Relief Angle
0.00
Included Angle Degree
120
Hole Diameter (Mm) ( - 0 Decimals)
0.20
Manufacturer Grade
KCPM20
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Double
Cutter Series Compatibility
Dodeka
Length Range (Decimal Inch)
0.4500 to 0.5000
Thickness Range (Decimal Inch)
0.1750 to 0.1850
Inscribed Circle (mm)
12.00
Corner Radius (mm)
1.00
Iso Code
HNPJ0604ANSNGD
Product Overview
Milling Insert: HNPJ0604ANSNGD, KCPM20, Solid Carbide TiN, MT, TiCN, Al2O3 Coated, 0.175" Thick
