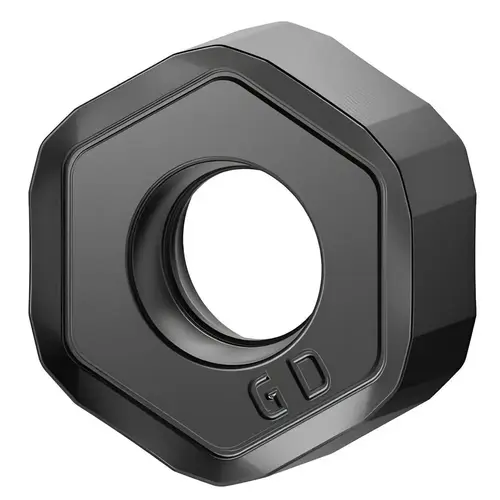

Kennametal 4119699 Milling Insert: HNPJ0604ANSNGD, KCK15, Solid Carbide TiN
Item #: 4119699 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
HNPJ0604ANSNGD
Inscribed Circle (mm)
12.00
Thickness Range (Decimal Inch)
0.1750 to 0.1850
Length Range (Decimal Inch)
0.4500 to 0.5000
Cutter Series Compatibility
Dodeka
Single or Double Sided Insert
Double
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Manufacturer Grade
KCK15
Included Angle Degree
120
Relief Angle
0.00
Insert Size Code
43
Insert Style
HNPJ
Chip Breaker
GD
Insert Shape
Hexagon
Inscribed Circle (Decimal Inch)
0.4724
Insert Hand
Neutral
Rake
Negative
Multi-use Tool
Yes
Insert Holding Method
Screw
Coating Classification
CVD
Width (Decimal Inch - 4 Decimals)
0.4724
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Decimal Inch - 4 Decimals)
0.1750
Primary Workpiece Material Code
K
Primary Workpiece Material
Cast Iron
Material Grade
C1
Manufacturers Catalog Number
HNPJ0604ANSNGD
Length (Decimal Inch - 4 Decimals)
0.4724
Corner Radius (Decimal Inch)
0.0394
Coating/Finish
TiN
Coating Process
MTCVD
Series
HNPJ
Insert Material
Solid Carbide
Standards
ANSI
Number of Cutting Edges
12
ANSI Code
HNPJ43ANSNGD
Material Application
Cast Iron
Cutting Edge Style
Chamfered
Product Overview
Milling Insert: HNPJ0604ANSNGD, KCK15, Solid Carbide TiN, TiCN, Al2O3 Coated, 0.175" Thick
