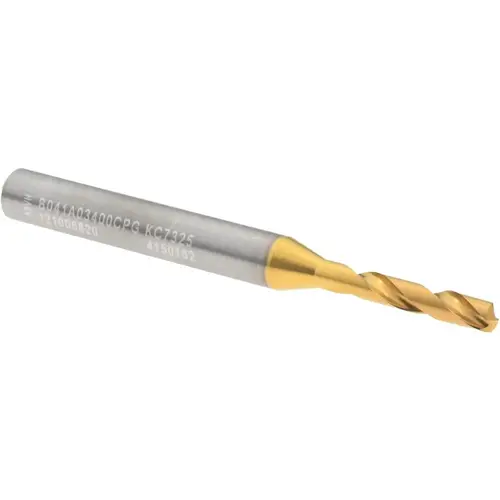

Screw Machine Length Drill Bit: 3.40 mm Dia, 140 deg Point, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 4150162 Screw Machine Length Drill Bit: 3.40 mm Dia, 140 deg Point, Solid Carbide TiN

Item #: 4150162 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$70.99

/each
SAVE UP TO 7.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 62 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

62.00

Number of Flutes

2

Standards

DIN 6535

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

B041A

Point Type

Standard

Drill Length Type

Screw Machine

Spiral Type

Regular

Coating/Finish

TiN

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.1339

Drill Bit Size (mm)

3.40

Drill Bit Size Range (Decimal Inch)

0.1000 to 0.1500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.7874

Flute Length (mm)

20.00

Maximum Drilling Depth (Decimal Inch)

0.5512

Overall Length (Decimal Inch)

2.4409

Primary Workpiece Material

Steel

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Shank Length (Decimal Inch)

1.4173

Shank Length (mm)

36.00

UNSPSC Code

23241635

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0005 to 0.0000 in

Drill Bit Size Range (mm)

0.00 - 3.50

Drill Point Angle

140

Maximum Drilling Depth (mm)

14.00

Proprietary Coating/Finish

TiN (Tip)

Specification Designation

DIN

Specification Number

DIN 6537K

Web Configuration

Tapered

Drill Point Length (mm)

0.55

Drill Point Length (Decimal Inch)

0.0218

Product Overview
Screw Machine Length Drill Bit: 3.40 mm Dia, 140 deg Point, Solid Carbide 62.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series B041A
