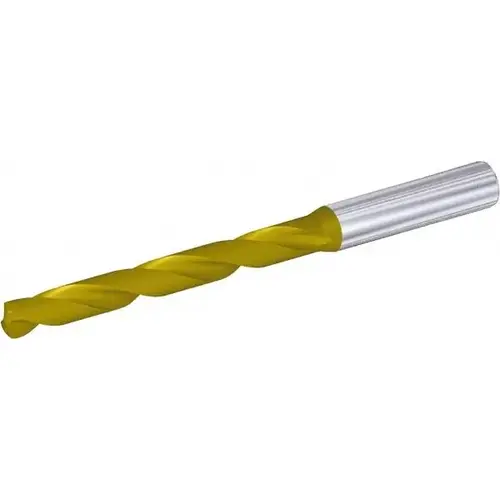

Kennametal 4151176 Screw Machine Length Drill Bit: 8.10 mm Dia, 140 deg Point, Solid Carbide TiN

Item #: 4151176 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$138.91

/each
SAVE UP TO 13.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Drill Point Length (Decimal Inch)

0.0540

Drill Point Length (mm)

1.37

Web Configuration

Tapered

Specification Number

DIN 6537K

Specification Designation

DIN

Proprietary Coating/Finish

TiN (Tip)

Maximum Drilling Depth (mm)

35.00

Drill Point Angle

140

Drill Bit Size Range (mm)

8.00 - 9.50

Drill Bit Diameter Tolerance

-0.0006 to 0.0000 in

Vendor Drop Ship

N

UNSPSC Code

23241635

Shank Length (mm)

40.00

Shank Length (Decimal Inch)

1.5748

Shank Diameter (mm)

10.00

Shank Diameter (Decimal Inch)

0.3937

Overall Length (Decimal Inch)

3.5039

Maximum Drilling Depth (Decimal Inch)

1.3780

Flute Length (mm)

47.00

Flute Length (Decimal Inch)

1.8504

Flute By Diameter Ratio

3xD

Drill Bit Size Range (Decimal Inch)

0.3000 to 0.3500

Drill Bit Size (mm)

8.10

Drill Bit Size (Decimal Inch)

0.3189

Coolant Through

Yes

Coating/Finish

TiN

Spiral Type

Regular

Drill Length Type

Stub

Point Type

Standard

Series

B051A-CPG

Cutting Direction

Right Hand

Tool Material

Solid Carbide

Number of Flutes

2

Overall Length (mm)

89.00

Shank Type

Straight

Flute Type

Regular Spiral

Product Overview
Screw Machine Length Drill Bit: 8.10 mm Dia, 140 deg Point, Solid Carbide Multilayer TiAlN Coated, 89.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series B051A-CPG
