Taper Length Drill Bit: Series B053A-CPG, 1.8 mm Dia, 140 degree Point, Solid Carbide Multilayer TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

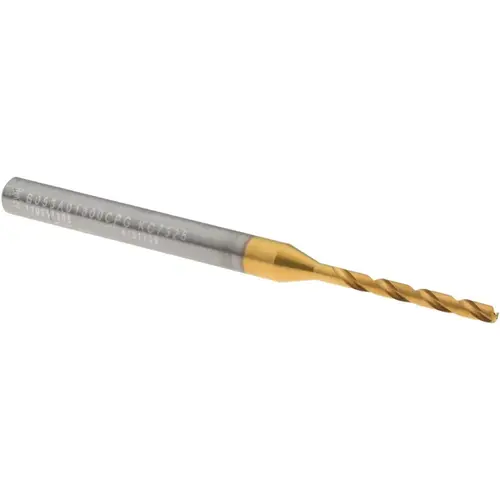

Kennametal 4151739 Taper Length Drill Bit: Series B053A-CPG, 1.8 mm Dia, 140 degree Point, Solid Carbide Multilayer TiAlN

Item #: 4151739 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$208.98

/each
SAVE UP TO 20.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 35 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

58

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

B053A-CPG

Point Type

Standard

Spiral Type

Regular

Coating/Finish

Multilayer TiAlN

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.0709

Drill Bit Size (mm)

1.80

Drill Point Angle

140 degrees

Flute Length (Decimal Inch)

0.7087

Flute Length (mm)

18.00

Material Grade

KC7325

Maximum Drilling Depth (Decimal Inch)

0.5906

Overall Length (Decimal Inch)

2-1/4

Shank Diameter (Decimal Inch)

0.1575

Shank Diameter (mm)

4.00

Shank Length (Decimal Inch)

1.1024

Shank Length (mm)

28.00

UNSPSC Code

23241600

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0006 to 0.0000 in

Maximum Drilling Depth (mm)

15.00

Specification Number

DIN 6537K

Web Configuration

Tapered

Drill Point Length (mm)

0.28

Drill Point Length (Decimal Inch)

0.0110

Flute Length x Diameter Ratio

8xD

Product Overview
Taper Length Drill Bit: Series B053A-CPG, 1.8 mm Dia, 140 degree Point, Solid Carbide Multilayer TiAlN Coated, 18 mm Flute Length, 58 mm OAL, Right Hand Cut, Spiral Flute, Straight Shank
