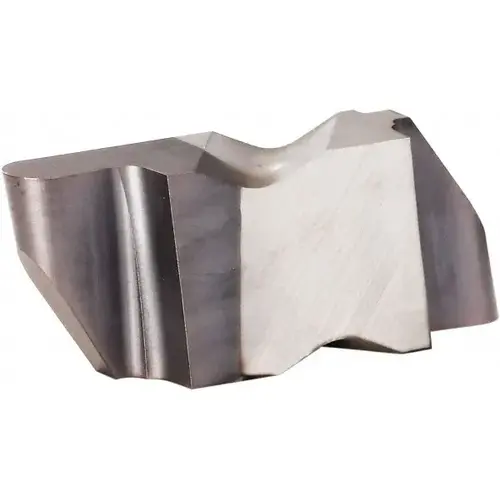

Grooving Insert: NR2062 KCU10, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 4175903-XCP5 Grooving Insert: NR2062 KCU10, Solid Carbide - pack of 5

Item #: 4175903-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Series

Top Notch

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0626

Material Grade

C3

Overall Length (Decimal Inch)

0.5083

Overall Width (Decimal Inch - 4 Decimals)

0.151

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1252

Insert Holding Method

Clamp

Maximum Depth of Cut (Decimal Inch)

0.1098

Multi-use Tool

No

Overall Width (mm)

3.84

Insert Hand

Left Hand

Full Radius

Yes

Insert Style

NR

Included Angle Degree

55

Maximum Depth of Cut (mm)

2.79

Cutting Height (Decimal Inch)

0.2190

Manufacturer Grade

KCU10

Maximum Depth Of Cut Range (Decimal Inch)

0.1000 to 0.1500

Maximum Depth Of Cut Range (mm)

2.00 to 3.00

Corner Radius (mm)

1.59

Cutting Width (mm)

3.18

Cutting Height (mm)

5.56

Product Overview
Grooving Insert: NR2062 KCU10, Solid Carbide AlTiN Finish, Left Hand, 3.18 mm Cutting Width, 2.79 mm Max Depth, Series Top Notch
