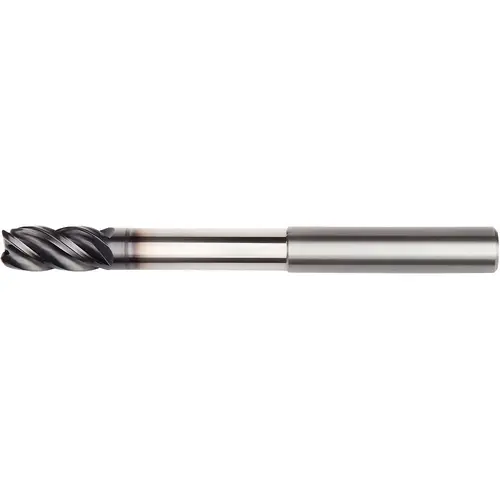

Corner Chamfer End Mill: 16.00 mm Dia, 31.98 mm LOC, 4 Flute, 0.50 mm Chamfer Width, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5357002 Corner Chamfer End Mill: 16.00 mm Dia, 31.98 mm LOC, 4 Flute, 0.50 mm Chamfer Width, Solid Carbide AlTiN

Item #: 5357002 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$707.56

/each
SAVE UP TO 70.76
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Helical

Shank Type

Straight-Cylindrical

Overall Length (mm)

149.99

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Regular

Cutting Direction

Right Hand

Series

UADE

Variable Helix

No

Coating/Finish

AlTiN

Coolant Through

No

Length Of Cut (Decimal Inch - 4 Decimals)

1.2598

Manufacturers Catalog Number

UADE1600A4AL

Material Grade

KCPM15

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (mm)

16.00

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.6299

Neck Diameter (Decimal Inch)

0.5906

Single Or Double End

Single

Variable Index

Yes

Length of Cut (mm)

31.98

Reach Length (mm)

100.00

Mill Diameter Tolerance

-0.032 to -0.059 mm

Chamfer Angle

45

Reach Length (Decimal Inch)

3.9370

Mill Diameter (mm)

16.00

Neck Diameter (mm)

15.00

Chamfer Width (mm)

0.50

Chamfer Width (Decimal Inch)

0.0197

Shank Diameter Tolerance

+0.000 to -0.011 mm

Chamfer Length (mm)

0.50

Product Overview
Corner Chamfer End Mill: 16.00 mm Dia, 31.98 mm LOC, 4 Flute, 0.50 mm Chamfer Width, Solid Carbide 149.99 mm OAL, 16.00 mm Shank Dia, 38 deg Helix, AlTiN Coated, Centercutting, Series UADE
