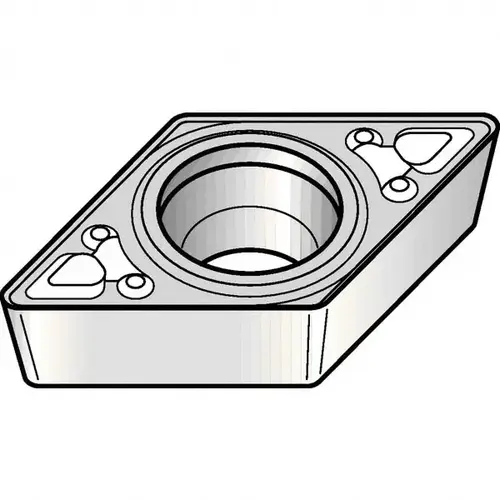

Kennametal 5413191-XCP5 Turning Insert: DCMT32.52MF KCP25B, Solid Carbide - pack of 5

Item #: 5413191-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$112.32

/package
SAVE UP TO 11.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

5413191

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.9156

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0900

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

C

Rake Angle

0

Full Radius

No

Insert Shape Code

D

Chip Breaker

MF

Insert Style

DCMT

Insert Size Code

3252

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

2.29

Chip Breaker Operation

Finishing

Manufacturer Grade

KCP25B

ISO Size Code

11T308

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

3252

ISO Insert Code

DCMT11T308

Proprietary Coating Designation

Multilayer Coating

Iso Code

DCMT11T308MF

ANSI Insert Code

DCMT3252

Product Overview
Turning Insert: DCMT32.52MF KCP25B, Solid Carbide TiCN, Al2O3 & TiOCN Coated, 0.458" Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Screw-On
