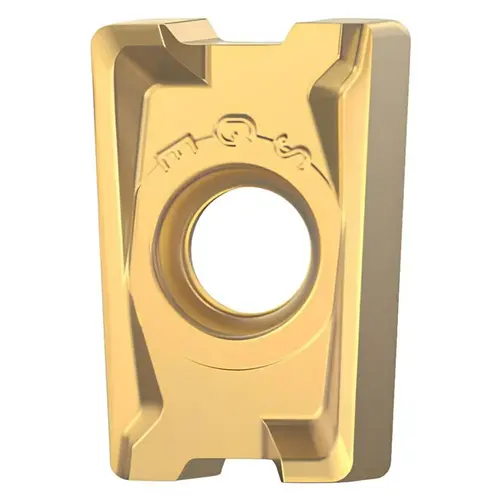

Kennametal 5516075 Milling Insert: KC725M, Solid Carbide TiAlN
Item #: 5516075 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length (Decimal Inch - 4 Decimals)
0.6690
Standards
ANSI
Inscribed Circle (Decimal Inch)
0.3937
Coating Process
PVD
Primary Workpiece Material
Steel
Corner Radius (Decimal Inch)
0.0157
Chip Breaker
GE
Length Range (Decimal Inch)
0.6500 to 0.7000
Multi-use Tool
Yes
Coating Classification
PVD
Insert Size Code
541
Included Angle Degree
90
Material Application
Steel
Number of Cutting Edges
4
ANSI Code
LNGU541SRGE
Series
LNGU
Insert Shape
Rectangle
Single or Double Sided Insert
Single
Primary Workpiece Material Code
P
Insert Material
Solid Carbide
Corner Radius (mm)
0.40
Vendor Drop Ship
N
Iso Code
LNGU15T604SRGE
Width (Decimal Inch - 4 Decimals)
0.3937
Thickness (Decimal Inch - 4 Decimals)
0.2740
Relief Angle
0.00
Cutting Edge Style
Chamfered
Cutter Series Compatibility
Mill 4-15
Rake
Positive
Material Grade
C5
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Insert Holding Method
Screw
Coating/Finish
TiAlN
UNSPSC Code
23291601
Corner Radius (Inch)
1/64
Insert Style
LNGU
Manufacturers Catalog Number
LNGU15T604SRGE
Insert Hand
Right Hand
Inscribed Circle Range (Decimal Inch)
0.3500 to 0.4000
Manufacturer Grade
KC725M
Product Overview
Milling Insert: KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.1874" Thick, 0.3937" Wide
