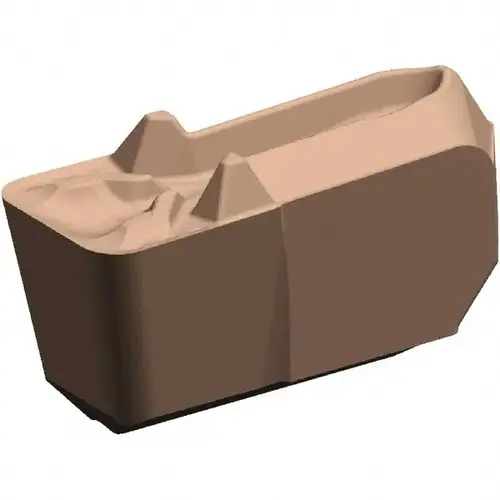

Grooving Insert: EG-U5GUP KCU25, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5533214 Grooving Insert: EG-U5GUP KCU25, Solid Carbide AlTiN

Item #: 5533214 by Kennametal

See reviewsSee reviews
See reviews summary

$33.11

/each
SAVE UP TO 3.31
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Series

Beyond Evolution

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0310

Overall Length (Decimal Inch)

0.482

Overall Width (Decimal Inch - 4 Decimals)

0.202

UNSPSC Code

23242105

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.2020

Insert Thickness (Decimal Inch)

0.1920

Maximum Depth of Cut (Decimal Inch)

0.1260

Multi-use Tool

No

Overall Width (mm)

5.13

Rake

Positive

Insert Hand

Neutral

Rake Angle

30

Full Radius

No

Chip Breaker

GUP

Insert Style

EG-U

Maximum Depth of Cut (mm)

3.20

Cutting Height (Decimal Inch)

0.1920

Manufacturer Grade

KCU25

Maximum Depth Of Cut Range (Decimal Inch)

0.1000 to 0.1500

Maximum Depth Of Cut Range (mm)

3.00 to 4.00

Corner Radius (mm)

0.80

Cutting Width (mm)

5.13

Cutting Height (mm)

4.86

Product Overview
Grooving Insert: EG-U5GUP KCU25, Solid Carbide AlTiN Finish, Neutral, 5.13 mm Cutting Width, 3.2 mm Max Depth, Series Beyond Evolution
