Kennametal 5537430-XCP5 Turning Insert: CPMT2151UF KCP25B, Solid Carbide - pack of 5

Item #: 5537430-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$122.88

/package
SAVE UP TO 12.29
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

5537430

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2539

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0845

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Rake Angle

5

Full Radius

No

Insert Shape Code

C

Chip Breaker

UF

Insert Style

CPMT

Insert Size Code

2151

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Chip Breaker Operation

Finishing

Manufacturer Grade

KCP25B

ISO Size Code

060204

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.0000 - 0.3000

ANSI Size Code

2151

ISO Insert Code

CPMT060204

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CPMT2151

Product Overview

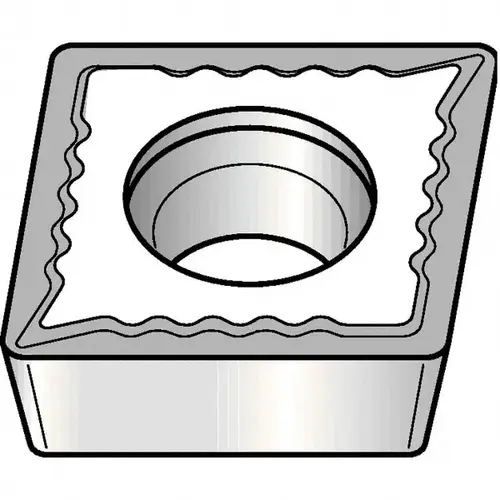

Turning Insert: CPMT2151UF KCP25B, Solid Carbide 1/4" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond
