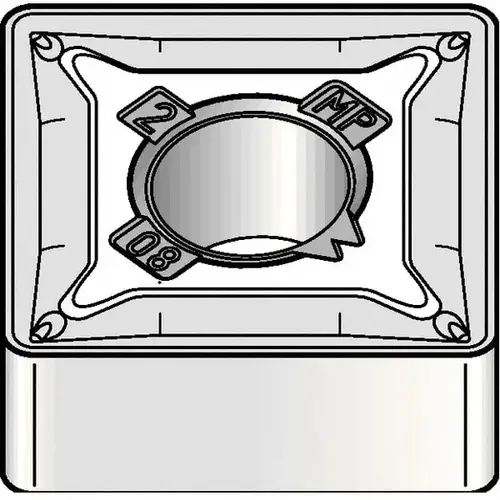

Kennametal 5591954 Turning Insert: SNMG543MP KCM25B, Solid Carbide TiCN

Item #: 5591954 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$33.99

/each
SAVE UP TO 3.40
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 101 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

5591954

Material Grade

C1

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6250

Width (Inch)

5/8

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6250

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.2081

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.6250

Insert Length (mm)

15.88

Corner Radius (Inch)

3/64

Insert Shape

S - Square

Clearance Code

N

Rake Angle

6

Full Radius

No

Insert Shape Code

S

Chip Breaker

MP

Insert Style

SNMG

Insert Size Code

543

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2500

Relief Angle

0

Inscribed Circle (Inch)

5/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

6.35

Insert Length (Inch)

5/8

Chip Breaker Operation

Roughing

Manufacturer Grade

KCM25B

ISO Size Code

150612

Grade Characteristics

Steel (P) - High Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

543

ISO Insert Code

SNMG150612

Proprietary Coating Designation

Multilayer Coating

Iso Code

SNMG150612MP

ANSI Insert Code

SNMG543

Product Overview
Turning Insert: SNMG543MP KCM25B, Solid Carbide TiOCN Coated, Neutral, 15.88 mm Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 90 degree Square, Series KENLOC
