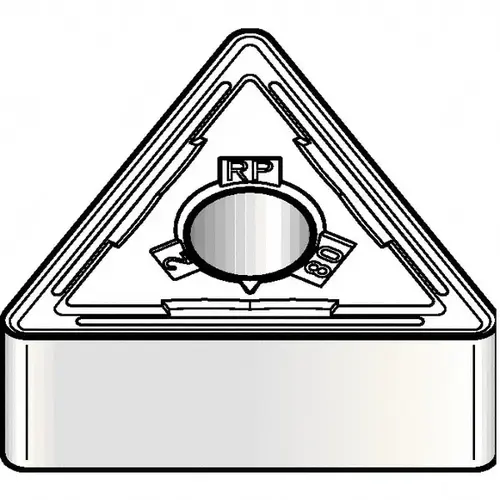

Kennametal 5591964 Turning Insert: TNMG433RP KCM25B, Solid Carbide TiCN

Item #: 5591964 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$26.09

/each
SAVE UP TO 2.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 47 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Side Clearance

Negative

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.2884

ISO Insert Code

TNMG220412

Iso Code

TNMG220412RP

Grade Characteristics

Steel (P) - High Toughness

Width (Decimal Inch - 4 Decimals)

0.8661

Relief Angle

0

Cutting Edge Style

Chamfered

Clearance Code

N

Rake

Negative

Material Grade

C1

ANSI Insert Code

TNMG433

Insert Length (Decimal Inch)

0.8661

Insert Holding Method

Clamp

Coating/Finish

TiCN

Rake Angle

5

UNSPSC Code

23242105

Corner Radius (Inch)

3/64

Insert Style

TNMG

Manufacturers Catalog Number

5591964

ANSI Size Code

433

Insert Hand

Neutral

Proprietary Coating Designation

Multilayer Coating

Manufacturer Grade

KCM25B

Inscribed Circle (Inch)

1/2

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Coating Process

MTCVD

Primary Workpiece Material

Steel

Insert Shape Code

T

Corner Radius (Decimal Inch)

0.0469

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.2031

Chip Breaker

RP

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.7000 - 10.0000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

CVD

ISO Size Code

220412

Wiper Edge

No

Insert Size Code

433

Included Angle

60

Number of Cutting Edges

6

Series

KENLOC

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Insert Shape

T - Triangle

Chip Breaker Operation

Roughing

Primary Workpiece Material Code

P

Product Overview
Turning Insert: TNMG433RP KCM25B, Solid Carbide TiOCN Coated, Neutral, 22 mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 60 degree Triangle, Series KENLOC
