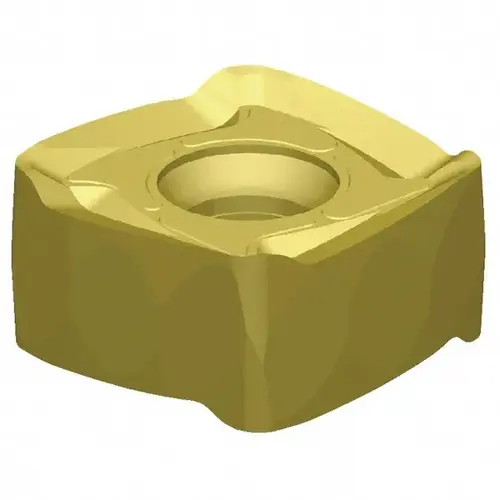

Kennametal 5654090-XCP10 Milling Insert: X500, Solid Carbide - pack of 10

Item #: 5654090-XCP10 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$577.17

/package
SAVE UP TO 57.72
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Steel

Length (mm)

11.99

ANSI Code

XOGU120512ERGU52

Number of Cutting Edges

8

Standards

ANSI

Thickness (mm)

5.56

Insert Material

Solid Carbide

Series

XOGU

Coating Process

CVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0470

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

XOGU120512ERGU52

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2210

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Square

Chip Breaker

GU52

Insert Style

XOGU

Insert Size Code

120512

Hole Diameter (Decimal Inch)

0.1732

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

0.17

Manufacturer Grade

X500

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Double

Cutter Series Compatibility

7793VXO12

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2200 to 0.2350

Corner Radius (mm)

1.20

Iso Code

XOGU120512ERGU52

Product Overview
Milling Insert: X500, Solid Carbide TiN Coated, 5.56 mm Thick
