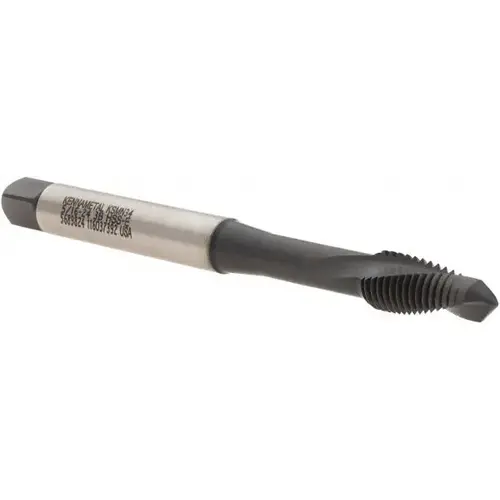

Spiral Point Tap: 5/16-24, UNF, 2 Flutes, Plug, 3B, Vanadium High Speed Steel, TiN/CrC/C Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5689824Click To Copy Spiral Point Tap: 5/16-24, UNF, 2 Flutes, Plug, 3B, Vanadium High Speed Steel, TiN/CrC/C Finish

Item #: 5689824 by Kennametal

See reviewsSee reviews
See reviews summary

$44.94

/each
SAVE UP TO 4.49

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

HSS-E

Style

Spiral Point

Application

Through-Hole Threading

Material Application

Non-Ferrous Metal

Overall Length (mm)

90.00

Number of Flutes

2

Thread Direction

Right Hand

Threads Per Inch

24

Series

T672

Thread Length (mm)

14.99

Thread Standard

UNF

Chamfer

Plug

Class Of Fit

3B

Coating/Finish

TiN

Coolant Through

No

Material Grade

KSMN34

Overall Length (Decimal Inch)

3.5400

Oversize

No

Shank Diameter (Decimal Inch)

0.3180

Shank Diameter (mm)

8.08

Thread Length (Decimal Inch)

0.5900

Thread Length (Inch)

19/32

Thread Size (Inch)

5/16-24

UNSPSC Code

23241600

Vendor Drop Ship

N

Interrupted Thread

No

Neck Length (Decimal Inch)

0.7900

Thread Limit

H3

Thread Pitch (Decimal Inch)

0.0417

Neck Length (mm)

20.06

Product Overview
Spiral Point Tap: 5/16-24, UNF, 2 Flutes, Plug, 3B, Vanadium High Speed Steel, TiN/CrC/C Finish 19/32" Thread Length, 3.54" OAL, Right Hand, H3, Series T672
