Spiral Flute Tap: M10x1.50 Metric Coarse, 2 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, TiN/CrC/C Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

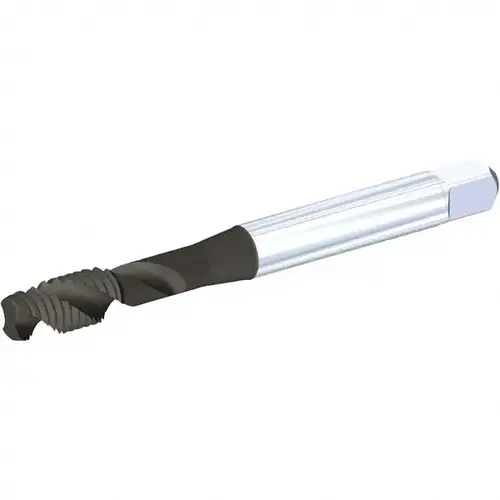

Kennametal 5689901 Spiral Flute Tap: M10x1.50 Metric Coarse, 2 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, TiN/CrC/C Coated

Item #: 5689901 by Kennametal

See reviewsSee reviews
See reviews summary

$106.99

/each
SAVE UP TO 10.70
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Cobalt

Flute Style

Fast

Material Application

Aluminum Wrought Alloy

Overall Length (mm)

100.00

Helix Angle

45

Number of Flutes

2

Thread Direction

Right Hand

Series

T682

Thread Length (mm)

18.00

Thread Size (mm)

M10x1.5

Thread Standard

Metric Coarse

Chamfer

Modified Bottoming

Class Of Fit

6H

Coating/Finish

Multi-layer

Coolant Through

No

Overall Length (Decimal Inch)

3.9400

Primary Workpiece Material

Aluminum & Non-Ferrous

Primary Workpiece Material Code

N

Shank Diameter (Decimal Inch)

0.3810

Shank Diameter (mm)

9.68

Tapping Depth (mm)

39.00

UNSPSC Code

23241600

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

0.8300

Proprietary Coating/Finish

CrC/C

Tapping Depth (Decimal Inch)

1.5400

Thread Limit

H6

Product Overview
Spiral Flute Tap: M10x1.50 Metric Coarse, 2 Flutes, Modified Bottoming, 6H Class of Fit, Vanadium High Speed Steel, TiN/CrC/C Coated 18 mm Thread Length, 100 mm OAL, Right Hand Thread, H6, Series T682
