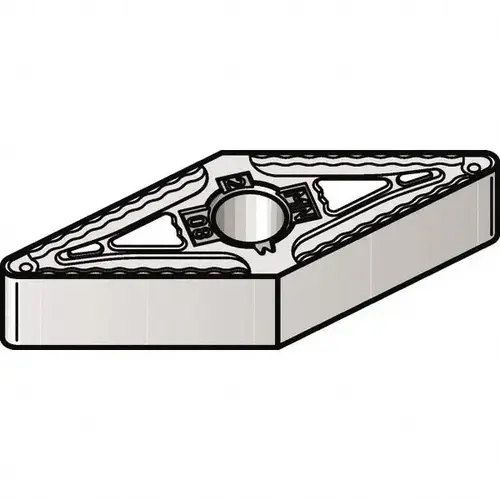

Turning Insert: VNMG331MN KCP25B, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5696930 Turning Insert: VNMG331MN KCP25B, Solid Carbide TiCN

Item #: 5696930 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$29.63

/each
SAVE UP TO 2.96
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 115 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Maximum Depth of Cut (Decimal Inch)

0.4354

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.61

Corner Radius (Inch)

1/64

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

V

Chip Breaker

MN

Insert Style

VNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Chip Breaker Operation

Roughing

Manufacturer Grade

KCP25B

ISO Size Code

160404

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

331

ISO Insert Code

VNMG160404

Proprietary Coating Designation

Multilayer Coating

Iso Code

VNMG331

ANSI Insert Code

VNMG331

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

5696930

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.3076

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Product Overview
Turning Insert: VNMG331MN KCP25B, Solid Carbide TiOCN Coated, Neutral, 16.61 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series KENLOC
