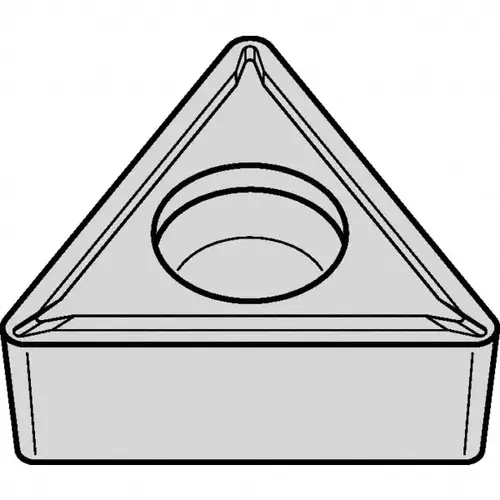

Kennametal 5698124 Turning Insert: TCMT432LF KCP25B, Solid Carbide TiCN

Item #: 5698124 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$35.33

/each
SAVE UP TO 3.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 201 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

5698124

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.8661

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2884

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

C

Rake Angle

5

Full Radius

No

Insert Shape Code

T

Chip Breaker

LF

Insert Style

TCMT

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2165

Relief Angle

7

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.50

Chip Breaker Operation

Finishing

Manufacturer Grade

KCP25B

ISO Size Code

220408

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

432

ISO Insert Code

TCMT220408

Proprietary Coating Designation

Multilayer Coating

Iso Code

TCMT220408LF

ANSI Insert Code

TCMT432

Product Overview
Turning Insert: TCMT432LF KCP25B, Solid Carbide TiOCN Coated, Neutral, 22 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series Screw-On
