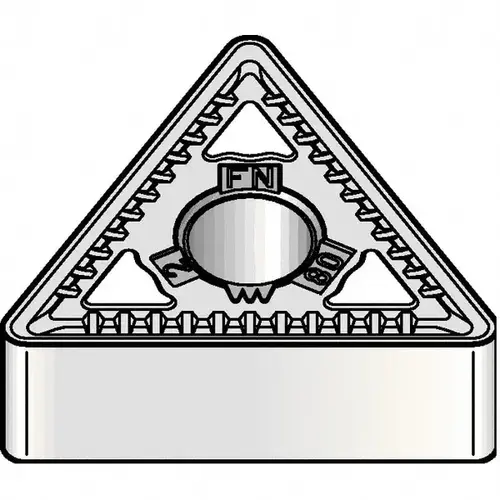

Turning Insert: TNMG331FN KCP25B, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5698187Click To Copy Turning Insert: TNMG331FN KCP25B, Solid Carbide

Item #: 5698187 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$19.98

/each
SAVE UP TO 2.00

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENLOC

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

5698187

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6496

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6496

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2163

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.50

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Clearance Code

N

Rake Angle

10

Full Radius

No

Insert Shape Code

T

Chip Breaker

FN

Insert Style

TNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Manufacturer Grade

KCP25B

Length Range (Decimal Inch)

0.6000 - 0.6500

Proprietary Coating Designation

Multilayer Coating

Iso Code

TNMG160404FN

Product Overview
Turning Insert: TNMG331FN KCP25B, Solid Carbide TiOCN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series KENLOC
