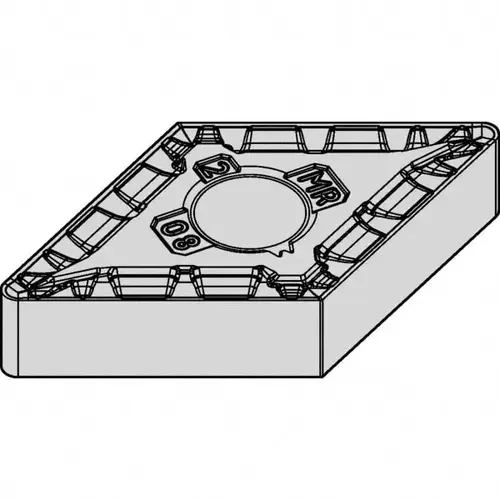

Kennametal 5699578-XCP5 Turning Insert: DNMG432MR KCM25B, Solid Carbide - pack of 5

Item #: 5699578-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$156.73

/package
SAVE UP TO 15.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

5699578

Material Grade

C1

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2208

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.4065

Maximum Depth Of Cut (Fractional Inch)

13/32

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

15.50

Corner Radius (Inch)

1/32

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

D

Chip Breaker

MR

Insert Style

DNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Chip Breaker Operation

Roughing

Manufacturer Grade

KCM25B

ISO Size Code

150408

Grade Characteristics

Steel (P) - High Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

432

ISO Insert Code

DNMG150408

Proprietary Coating Designation

Multilayer Coating

Iso Code

DNMG150408MR

ANSI Insert Code

DNMG432

Product Overview
Turning Insert: DNMG432MR KCM25B, Solid Carbide TiOCN Coated, Neutral, 15.5 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series KENLOC
