Spiral Flute Tap: 5/16-24 UNF, 3 Flutes, Plug, Vanadium High Speed Steel, Oxide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

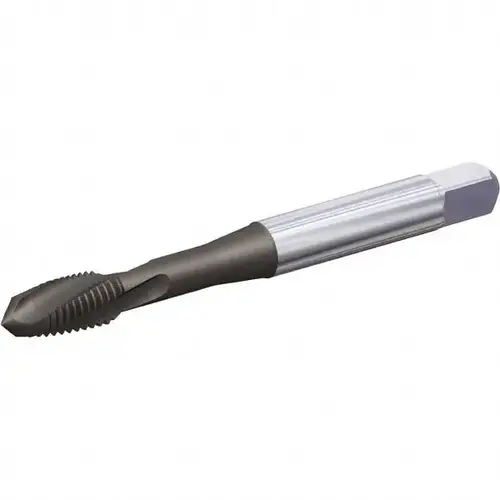

Kennametal 5705901 Spiral Flute Tap: 5/16-24 UNF, 3 Flutes, Plug, Vanadium High Speed Steel, Oxide Coated

Item #: 5705901 by Kennametal

See reviewsSee reviews
See reviews summary

$52.97

/each
SAVE UP TO 5.30
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Powdered Metal

Flute Style

Slow

Material Application

Nickel Alloy

Helix Angle

10

Number of Flutes

3

Thread Direction

Right Hand

Series

T690

Thread Length (mm)

12.40

Thread Standard

UNF

Chamfer

Plug

Coating/Finish

Multi-layer

Coolant Through

No

Overall Length (Decimal Inch)

2.7300

Overall Length (Inch)

2-23/32

Primary Workpiece Material

High-Temp Alloy

Primary Workpiece Material Code

S

Shank Diameter (Decimal Inch)

0.3180

Shank Diameter (mm)

8.08

Tapping Depth (mm)

29.00

Thread Length (Decimal Inch)

0.4900

Thread Size (Inch)

5/16-24

UNSPSC Code

23241600

Vendor Drop Ship

Y

Flute Direction

Left Hand

Neck Length (Decimal Inch)

0.6600

Proprietary Coating/Finish

Nitride

Tapping Depth (Decimal Inch)

1.1500

Thread Limit

H6

Product Overview
Spiral Flute Tap: 5/16-24 UNF, 3 Flutes, Plug, Vanadium High Speed Steel, Oxide Coated 12.4 mm Thread Length, 2-23/32" OAL, Right Hand Thread, H6, Series T690
