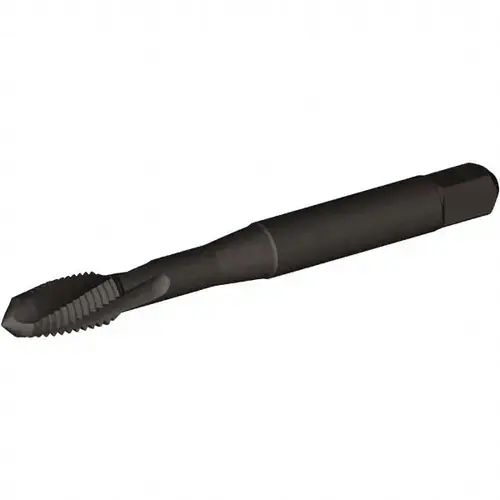

Spiral Flute Tap: M3x0.50 Metric Coarse, 2 Flutes, Plug, 6H Class of Fit, Vanadium High Speed Steel, AlCrTiN Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5705926Click To Copy Spiral Flute Tap: M3x0.50 Metric Coarse, 2 Flutes, Plug, 6H Class of Fit, Vanadium High Speed Steel, AlCrTiN Coated

Item #: 5705926 by Kennametal

See reviewsSee reviews
See reviews summary

$63.43

/each
SAVE UP TO 6.34

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thread Limit

D3

Tapping Depth (Decimal Inch)

0.7500

Proprietary Coating/Finish

AlCrTiN

Neck Length (Decimal Inch)

0.1200

Flute Direction

Left Hand

Vendor Drop Ship

Y

UNSPSC Code

23241600

Thread Length (Decimal Inch)

0.6300

Tapping Depth (mm)

19.00

Shank Diameter (mm)

3.58

Shank Diameter (Decimal Inch)

0.1410

Primary Workpiece Material Code

S

Primary Workpiece Material

High-Temp Alloy

Overall Length (Inch)

1-15/16

Overall Length (Decimal Inch)

1.9400

Coolant Through

No

Coating/Finish

AlCrTiN

Class Of Fit

6H

Chamfer

Plug

Thread Standard

Metric Coarse

Thread Size (mm)

M3x0.5

Thread Length (mm)

16.00

Series

T690

Thread Direction

Right Hand

Number of Flutes

2

Helix Angle

10

Material Application

Nickel Alloy

Flute Style

Slow

Material

Powdered Metal

Product Overview
Spiral Flute Tap: M3x0.50 Metric Coarse, 2 Flutes, Plug, 6H Class of Fit, Vanadium High Speed Steel, AlCrTiN Coated 16 mm Thread Length, 1-15/16" OAL, Right Hand Thread, D3, Series T690
