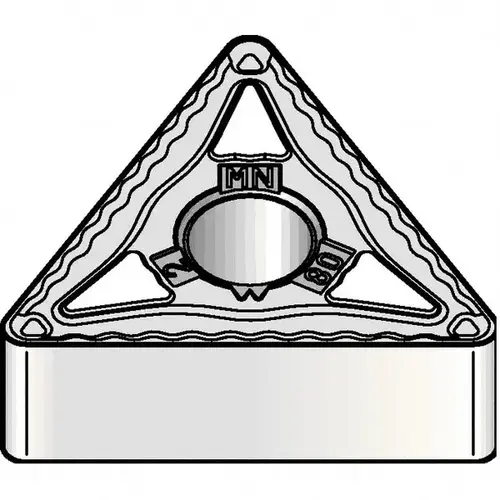

Kennametal 5882323 Turning Insert: TNMG332MN KCP30B, Solid Carbide TiN
Item #: 5882323 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
TNMG160408MN
Proprietary Coating Designation
Multilayer Coating
Length Range (Decimal Inch)
0.6000 - 0.6500
Manufacturer Grade
KCP30B
Hole Diameter (Mm) ( - 0 Decimals)
3.81
Multi-Use Application
Turning
Inscribed Circle (Inch)
3/8
Relief Angle
0
Hole Diameter (Decimal Inch)
0.1500
Tolerance Code
M
Insert Size Code
332
Insert Style
TNMG
Chip Breaker
MN
Insert Shape Code
T
Full Radius
No
Rake Angle
0
Clearance Code
N
Insert Shape
Triangle
Corner Radius (Inch)
1/32
Insert Length (mm)
16.50
Inscribed Circle (Decimal Inch)
0.3750
Wiper Edge
No
Insert Hand
Neutral
Rake
Negative
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.2163
Insert Thickness (Inch)
3/16
Insert Thickness (Decimal Inch)
0.1875
Insert Length (Decimal Inch)
0.6496
Insert Holding Method
Clamp
Coating Classification
CVD
Width (Decimal Inch - 4 Decimals)
0.6496in
Vendor Drop Ship
N
UNSPSC Code
23242105
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
C5
Manufacturers Catalog Number
5882323
Corner Radius (Decimal Inch)
0.0313
Coating/Finish
TiN
Coating Process
MTCVD
Series
KENLOC
Insert Material
Carbide
Included Angle
60degree
Standards
ANSI
Number of Cutting Edges
6
Cutting Edge Style
Chamfered & Honed
Product Overview
Turning Insert: TNMG332MN KCP30B, Solid Carbide TiOCN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series KENLOC
