Spiral Flute Tap: M8x1.25, Metric, 3 Flute, Modified Bottoming, High Speed Steel-E, TiCN & TiN Finish Black Oxide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

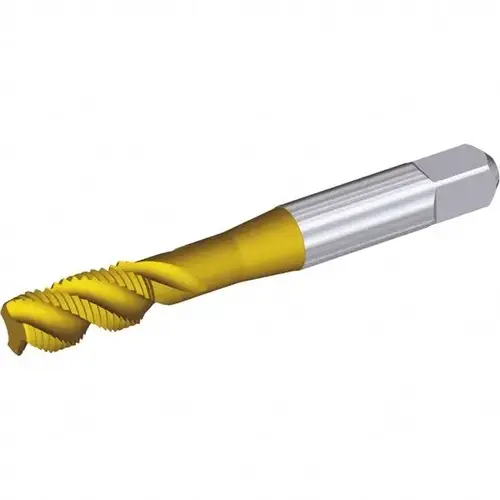

Kennametal 6140827 Spiral Flute Tap: M8x1.25, Metric, 3 Flute, Modified Bottoming, High Speed Steel-E, TiCN & TiN Finish Black Oxide

Item #: 6140827 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$99.52

/each
SAVE UP TO 9.95
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 23 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel-E

Flute Style

Fast

Overall Length (mm)

68.70

Helix Angle

45

Number of Flutes

3

Thread Direction

Right Hand

Thread Length (mm)

17.50

Thread Size (mm)

M8x1.25

Thread Standard

Metric

Chamfer

Modified Bottoming

Coating/Finish

Black Oxide

Coolant Through

No

Overall Length (Decimal Inch)

2.7100

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.3180

Shank Diameter (mm)

8.08

Shank Length (Decimal Inch)

1.2600

Shank Length (mm)

32.00

Square Size (Decimal Inch)

0.2360

Square Size (mm)

5.99

Tapping Depth (mm)

29.00

Thread Length (Decimal Inch)

0.6900

UNSPSC Code

23241600

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

0.4300

Proprietary Coating/Finish

TiCN

Square Length (Decimal Inch)

0.3800

Tapping Depth (Decimal Inch)

1.1200

Thread Limit

D5

Product Overview
Spiral Flute Tap: M8x1.25, Metric, 3 Flute, Modified Bottoming, High Speed Steel-E, TiCN & TiN Finish 17.50 mm Thread Length, 68.70 mm OAL, Right Hand Flute, Right Hand Thread, D5,
