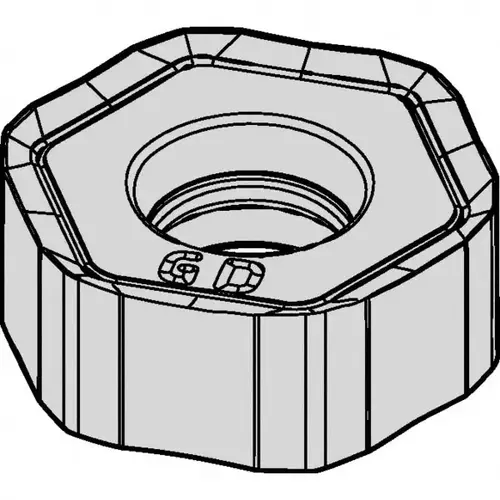

Kennametal 6165759 Milling Insert: HNPJ0604ANSNGD, KCSM40, Solid Carbide TiAlN
Item #: 6165759 by Kennametal
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Steel
ANSI Code
HNPJ43ANSNGD
Number of Cutting Edges
12
Standards
ANSI
Insert Material
Solid Carbide
Series
HNPJ
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0394
Length (Decimal Inch - 4 Decimals)
0.4724
Length (Inch)
1/4
Manufacturers Catalog Number
HNPJ0604ANSNGD
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Product Service Code
3455
Thickness (Decimal Inch - 4 Decimals)
0.1750
Thickness (Inch)
11/64
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4724
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.2533
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.4724
Insert Shape
Hexagon
Chip Breaker
GD
Insert Style
HNPJ
Insert Size Code
43
Relief Angle
0.00
Included Angle Degree
120
Manufacturer Grade
KCSM40
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Double
Cutter Series Compatibility
Dodeka
Length Range (Decimal Inch)
0.4500 to 0.5000
Thickness Range (Decimal Inch)
0.1750 to 0.1850
Inscribed Circle (mm)
12.00
Corner Radius (mm)
1.00
Iso Code
HNPJ0604ANSNGD
Product Overview
Milling Insert: HNPJ0604ANSNGD, KCSM40, Solid Carbide AlTiN, TiN Coated, 11/64" Thick
