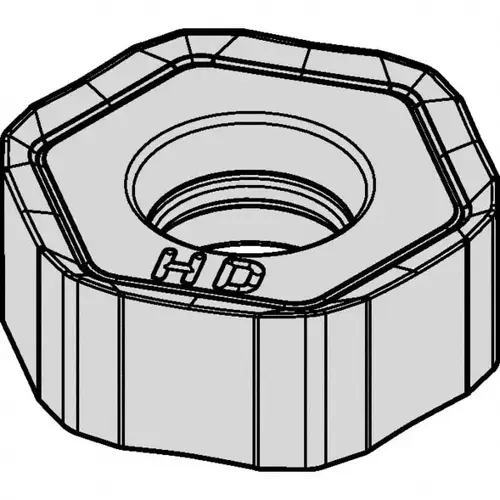

Milling Insert: HNPJ060432ANSNHD, KCSM40, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6165861-XCP5 Milling Insert: HNPJ060432ANSNHD, KCSM40, Solid Carbide - pack of 5

Item #: 6165861-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$175.70

/package
SAVE UP TO 17.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 36 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

ANSI Code

HNPJ438ANSNHD

Number of Cutting Edges

12

Standards

ANSI

Insert Material

Solid Carbide

Series

HNPJ

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.1250

Length (Decimal Inch - 4 Decimals)

0.4724

Length (Inch)

1/4

Manufacturers Catalog Number

HNPJ060432ANSNHD

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1736

Thickness (Inch)

11/64

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4724

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2537

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.4724

Corner Radius (Inch)

1/8

Insert Shape

Hexagon

Chip Breaker

HD

Insert Style

HNPJ

Insert Size Code

438

Relief Angle

0.00

Included Angle Degree

120

Manufacturer Grade

KCSM40

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Single or Double Sided Insert

Double

Cutter Series Compatibility

Dodeka

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Inscribed Circle (mm)

12.00

Iso Code

HNPJ060432ANSNHD

Product Overview
Milling Insert: HNPJ060432ANSNHD, KCSM40, Solid Carbide AlTiN, TiN Coated, 11/64" Thick
