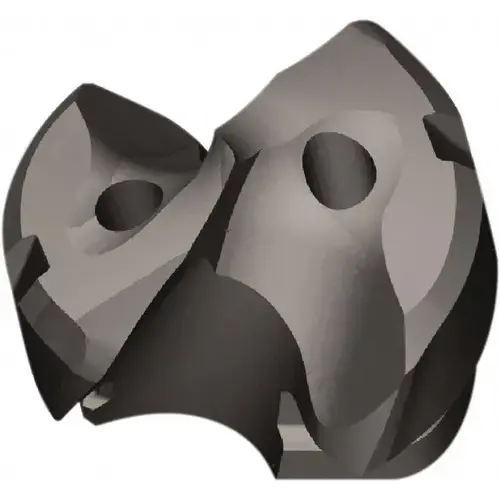

Replaceable Drill Tip: KTFST14500HPCM KC7410, 0.5709"/14.00 mm Dia, 140 deg Point, Grade KC7410 AlCr

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6370976 Replaceable Drill Tip: KTFST14500HPCM KC7410, 0.5709"/14.00 mm Dia, 140 deg Point, Grade KC7410 AlCr

Item #: 6370976 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$176.30

/each
SAVE UP TO 17.63
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Style

KTFST

Tip Material

Solid Carbide

Flute Type

Helical

Applications

Drilling

Number of Flutes

2

Series

KTFST

Point Type

Standard

Drilling

Cross-HoleDrilling

Height (mm)

11.00

Spiral Type

Regular Spiral

Coating Process

PVD

Coating/Finish

AlCr

Coolant Through

Yes

Flute Length (mm)

7.00

Material Grade

K15

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Drill Point Angle

140

Insert Holding Method

Clamp

Cutting Diameter (Decimal Inch)

0.5709

Cutting Diameter (mm)

14.50

ISO Number

KTFST14500HPCM

Included Angle Degree

140

Manufacturer Grade

KC7410

ToolDimensions

2flute/4margin/coolant

Functional Length (Decimal Inch)

0.2855

Insert Seat Size

S

Insert Geometry

HPC

Overall Length/Projection (Decimal Inch)

0.4178

Product Overview
Replaceable Drill Tip: KTFST14500HPCM KC7410, 0.5709"/14.00 mm Dia, 140 deg Point, Grade KC7410 Seat Size S, AlCr Coated, Coolant Through
