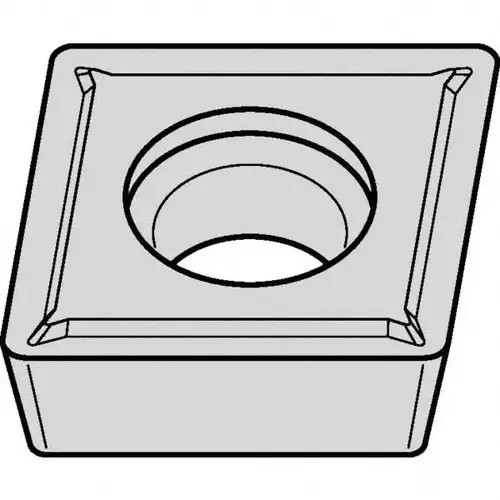

Turning Insert: CPGT21505LF KCS10B, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6686899 Turning Insert: CPGT21505LF KCS10B, Solid Carbide AlTiN

Item #: 6686899 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$27.44

/each
SAVE UP TO 2.74
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 58 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

1/4

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.0938

Side Clearance

Positive

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0845

ISO Insert Code

CPGT060202

Iso Code

CPGT060202LF

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Width (Decimal Inch - 4 Decimals)

0.2500

Relief Angle

11

Cutting Edge Style

Honed

Clearance Code

P

Rake

Positive

Material Grade

S10

ANSI Insert Code

CPGT21505

Insert Length (Decimal Inch)

0.2539

Insert Holding Method

Screw

Coating/Finish

AlTiN

Rake Angle

5

UNSPSC Code

23242105

Corner Radius (Inch)

1/128

Insert Style

CPGT

Manufacturers Catalog Number

6686899

ANSI Size Code

21505

Insert Hand

Neutral

Manufacturer Grade

KCS10B

Inscribed Circle (Inch)

1/4

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2500

Coating Process

PVD

Primary Workpiece Material

Stainless Steel

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0079

Insert Thickness (Inch)

3/32

Hole Diameter (Decimal Inch)

0.1142

Chip Breaker

LF

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.0000 - 0.3000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

G

Coating Classification

PVD

ISO Size Code

060202

Wiper Edge

No

Insert Size Code

21505

Included Angle

80

Number of Cutting Edges

2

Series

Screw-On

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Finishing

Primary Workpiece Material Code

P

Product Overview
Turning Insert: CPGT21505LF KCS10B, Solid Carbide AlTiN Coated, 0.2539" Long, 0.114" Inscribed Circle, 0.008" Corner Radius, Series CPGT
