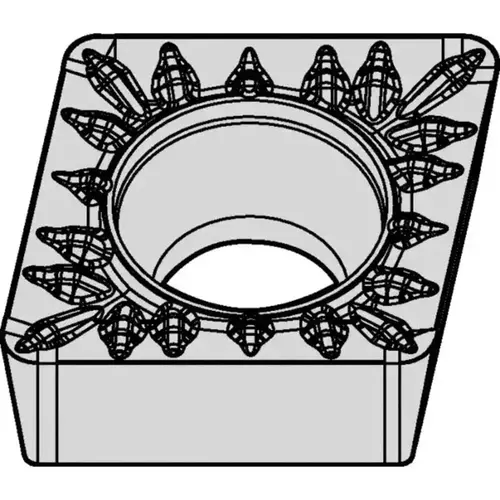

Turning Insert: CCMT3251MP KCS10B, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6686917 Turning Insert: CCMT3251MP KCS10B, Solid Carbide AlTiN

Item #: 6686917 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$29.05

/each
SAVE UP TO 2.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 242 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

6686917

Material Grade

S10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.1249

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Rake Angle

12

Full Radius

No

Insert Shape Code

C

Chip Breaker

MP

Insert Style

CCMT

Insert Size Code

3251

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Insert Length (Inch)

3/8

Chip Breaker Operation

Roughing

Manufacturer Grade

KCS10B

ISO Size Code

09T304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

3251

ISO Insert Code

CCMT09T304

Iso Code

CCMT09T304MP

ANSI Insert Code

CCMT3251

Product Overview
Turning Insert: CCMT3251MP KCS10B, Solid Carbide AlTiN Coated, 0.3808" Long, 0.1732" Inscribed Circle, 1/64" Corner Radius, Series CCMT
