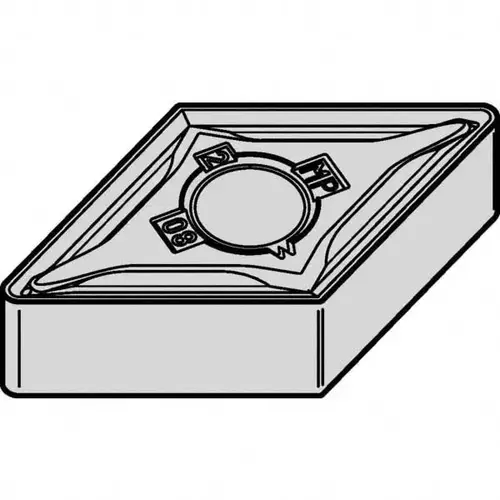

Turning Insert: DNMG431MP KCS10B, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6763682 Turning Insert: DNMG431MP KCS10B, Solid Carbide AlTiN

Item #: 6763682 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$33.65

/each
SAVE UP TO 3.36
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

6763682

Material Grade

S10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2208

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.4065

Maximum Depth Of Cut (Fractional Inch)

13/32

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

N

Rake Angle

6

Full Radius

No

Insert Shape Code

D

Chip Breaker

MP

Insert Style

DNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Chip Breaker Operation

Roughing

Manufacturer Grade

KCS10B

ISO Size Code

150404

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

431

ISO Insert Code

DNMG150404

Iso Code

DNMG150404MP

ANSI Insert Code

DNMG431

Product Overview
Turning Insert: DNMG431MP KCS10B, Solid Carbide AlTiN Coated, 0.6104" Long, 0.2031" Inscribed Circle, 1/64" Corner Radius
