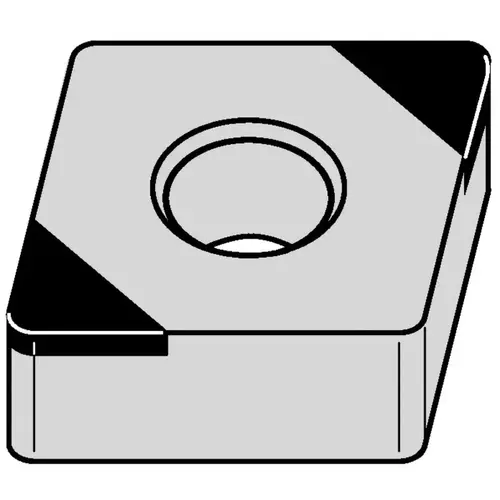

Kennametal 6904801 Turning Insert: CNGA433EMT, Hardened Material TiN

Item #: 6904801 by Kennametal

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$164.60

/each
SAVE UP TO 16.46
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

PCBN

Series

KENLOC

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

6904801

Material Grade

H15

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1691

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.70

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Flat Top

Insert Style

CNGA

Insert Size Code

433

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Insert Length (Inch)

1/2

Chip Breaker Operation

Flat Top

Manufacturer Grade

KBH20

ISO Size Code

120412

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

433

ISO Insert Code

CNGA120412

Corner Radius (mm)

1.20

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNGA120412EMT

ANSI Insert Code

CNGA433

Product Overview
Turning Insert: CNGA433EMT, Hardened Material TiN Coated, 12.7 mm Long, 1.2 mm Corner Radius, Series CNGA
