Turning Insert: DNMG433RN KCP25C, Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

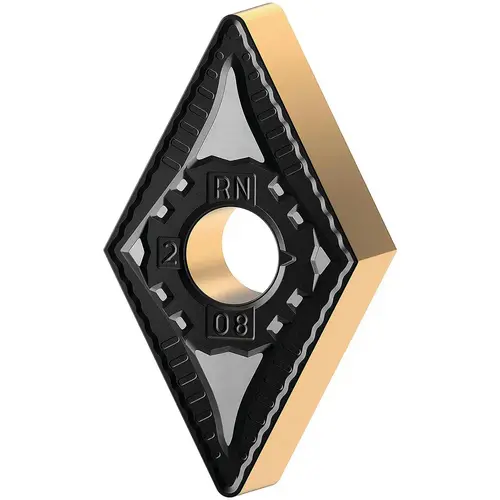

Kennametal 7026663 Turning Insert: DNMG433RN KCP25C, Carbide TiN

Item #: 7026663 by Kennametal

See reviewsSee reviews
See reviews summary

$25.13

/each
SAVE UP TO 2.51
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

KENLOC

Coating Process

CVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

7026663

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2200

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.4063

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

D

Chip Breaker

RN

Insert Style

DNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

KCP25C

Length Range (Decimal Inch)

0.7000 - 10.0000

Proprietary Coating Designation

Multilayer Coating

Iso Code

DNMG150412RN

Product Overview
Turning Insert: DNMG433RN KCP25C, Carbide MT-TiCN/AL2O3 Coated, Neutral, 0.61" Long, 1/2" Inscribed Circle, 3/64" Corner Radius, Series KENLOC
