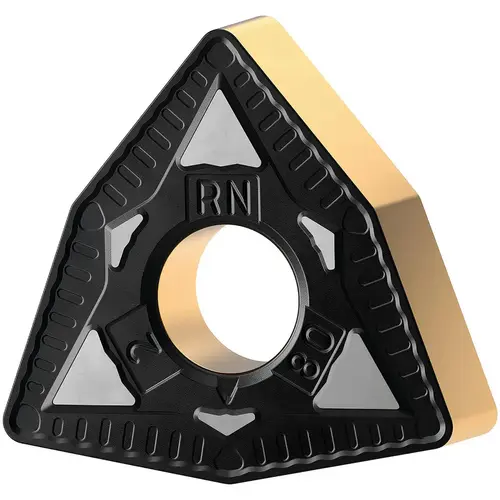

Kennametal 7026715Click To Copy Turning Insert: WNMG432RN KCP25C, Carbide
Item #: 7026715 by Kennametal
See reviewsSee reviews
In Stock
$19.80
/eachSAVE UP TO 1.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Rake
Negative
Insert Hand
Neutral
Wiper Edge
No
Number of Cutting Edges
6
Cutting Edge Style
Chamfered & Honed
Included Angle
80
Insert Material
Carbide
Series
KENLOC
Coating Process
CVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.0313
Manufacturers Catalog Number
7026715
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.684
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6840
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.2278
Multi-use Tool
Yes
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/32
Insert Shape
Trigon
Clearance Code
N
Rake Angle
0
Full Radius
No
Insert Shape Code
W
Chip Breaker
RN
Insert Style
WNMG
Insert Size Code
432
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2031
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Manufacturer Grade
KCP25C
Length Range (Decimal Inch)
0.6500 - 0.7000
Proprietary Coating Designation
Multilayer Coating
Iso Code
WNMG080408RN
Product Overview
Turning Insert: WNMG432RN KCP25C, Carbide MT-TiCN/AL2O3 Coated, Neutral, 0.342" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, Series KENLOC
