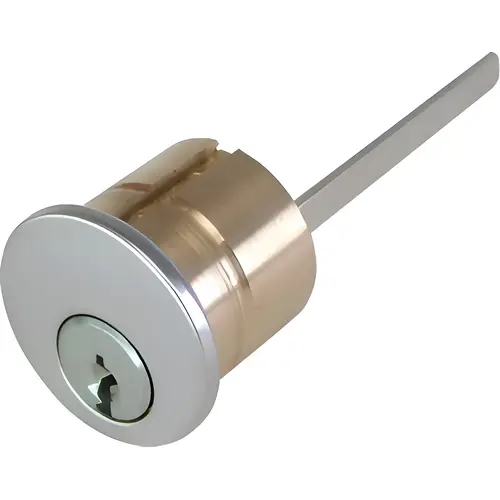

GMS Rim Cylinder Satin Chrome

Item #: R118KW26DA2 by GMS

Brand: GMS

See reviews
See reviews summary
In Stock

$16.28

21.35 /each
SAVE UP TO 1.63
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 228 units available

Alternate Part Number-1: 105240

105234
105235
105239
105240
105243
105244
105246
105247
105258
105259
QTY
-
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Finish

626 - Satin Chrome

Keyway

Kwikset Keyway

Cylinder Type

Conventional Rim

Finish Description

Satin Chrome

Product Type

Cylinder/IC Core

Series

R118 Series

Alternate Part Number-1

105240

Product Length

3.57 Inches

Finish Family

Satin Chrome

Keying Type

Keyed Alike

Product Material

Solid Brass

Cylinder Face Diameter

1.36 Inches

Cylinder Tailpiece Number

TLP-04

Cylinder Tailpiece Length

2.44 Inch

Cylinder Tailpiece Orientation

Tailpiece Converts Between Horizontal and Vertical Positions

Features

Screw-on Retaining Pin Design

For Use With

OEM Replacements for Schlage; Yale; Corbin; Best

Color Code

626/US26D

Function

Cylinder

Number of Pins

6

Manufacturer Parent

GMS Industries

Sub-Series

CB_Rim_Cylinders_GMS_Cylinders_11

Height

1.5

Length

3.75

Width

1.75

No Of Pins

6 Pin

No of inners

1

Finish code

US26D

Hazardous Material

No

Material

Solid Brass

Dimension

1-1/8"

Keying Option

Keyed Alike

Cylinder Cam Type

Adams Rite and Yale

Cylinder Classification

Conventional Mortise

Cylinder Length Specification

1-1/8"

Keyway Profile

Schlage C

Product Overview
R118Rim Cylinders

With unwavering attention to detail, and meeting OEM specifications, we strive to make our products "The Perfect Fit" for all applications where our customers use our cylinders.

Features:
  • Exact pinning specifications as original systems
  • OEM replacements for Schlage, Yale, Corbin, Best & more
  • Solid brass construction
  • 21 keyways
  • Tailpiece converts between horizontal & vertical positions
  • Screw-on retaining cap design
  • Available in eight finishes
Specifications: R118:
  • Type - Rim cylinder
  • Length - 1-1/8" (31.6mm)
Finishes:
  • Polished Brass - US3
  • Satin Bronze - US10
  • Satin Brass - US4
  • Satin Nickel - US15
  • Polished Chrome - US26
  • Stainless Steel - US32D
  • Satin Chrome - US26D
  • Oil Rubbed Bronze - US10B
Keyways:
  • Arrow 1179 - AW
  • Assa V-10 - ASV
  • Assa Twin 6000 - AST
  • Corbin 60 - CB60
  • Corbin L4 - CL4
  • Kwikset 1176 - KW
  • Russwin D1 - RD1
  • Sargent LA - SA
  • Sargent LA-LD - SAX
  • Sargent LB - SLB
  • Sargent RA - RA
  • Schlage C - SC
  • Schlage C123 - G23
  • Schlage C145 - G45
  • Schlage C-K - SX
  • Schlage E - SCE
  • Schlage F - SCF
  • Segal 9 - SE
  • Weiser E - WR
  • Yale 8 - YA
  • Yale GA - GA
Keying: Keyed alike in pairs:
  • A2
  • A2-6**
Zero bitted:
  • OB
  • OB-6**
Keyed different:
  • KD
  • KD-6**
Special keying:
  • KS
  • KS-6**
  • **Cylinders are 6 pin.
