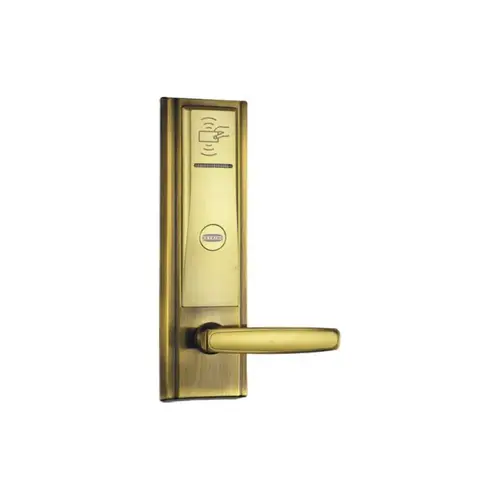

KeyKing KK-HL820MCS KKHL820M Smart Hotel Mortise Lock, Antique Brass/Bronze

KKHL820MCSHotel Lock

Using electromagnetic contactless technology, more sensitive.

Specifications: Voltage:

• 4 pieces of 5 (AAA) Alkaline batteries

Static power:

• <10μA

Dynamic power:

• about 200mA

Low voltage hint:

• 4.8v

Operation temperature:

• - 20°C ~ 50°C

Operation humidity:

• < 95%

Anti static electricity:

• > 15,000 V, in strong electrostatic interference can still be under guarantee information is not lost, stable work

Material:

• stainless steel wiredrawing, electroplating aureate (silver)

Door of installing size requirement:

• door thick in 36mm above, if the surface with lace, it should be from door edge lace 110mm above

Open the door direction:

• left pushed the door open, right pushed the door open, left pull open the door, right pull open the door

Lock dimensions:

• H300*W83*T26.5mm

Lock core dimensions:

• H204*W106*T23mm

Card types:

• the United States TEMIC company contactless card or Dutch PHILIPS ® company Mifare1 contactless card

Technical Specifications: Applicable card:

• T5557 Mifare one EM Card

Read range:

• 3-5cm

Static consumption:

• <10μA

Dynamic consumption:

• 200mA

Low voltage hint:

• 4.8V

Material color:

• Gold

Operation temperature:

• -20°C ～ 50°C

Operation humidity:

• <95%

Operation environment:

• -40°C ~ 70°C

Lock Weight:

• 4.0Kg
