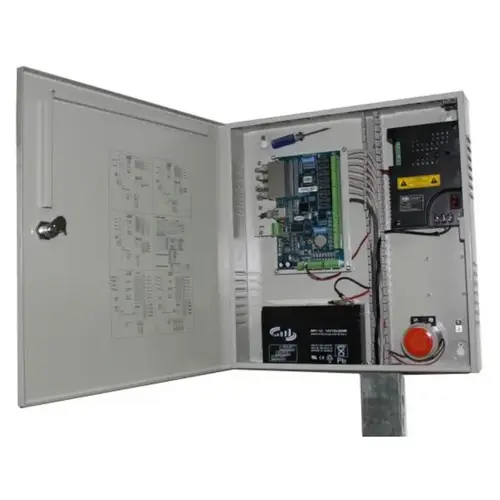

KeyKing KK-KIT1044NT-6610 KIT 1044NT with 6610

Power: 12Vdc 250mA (excluding power for readers) Outputs – 6 Relays, Form C, SPDT (Normally Open & Normally Close) with 5A Switching and 3A Continuous contacts. (30Vdc) 4 Door Relays (unused door relay become AUX) 2 AUX Programmable Relays Inputs – 10 Dry Contact 2 Wires with Common Ground 1 REX and 1 Doors Sense for each door 2 AUX Programmable Inputs Readers Inputs: 4 Weigand Inputs Provide 12Vdc up to 200mA power for the reader. Reader can also be self-powered. 2 Wire Weigand input – ANY range between 24-72 BIT including proprietary readers from 3rd. party manufacturers. LED Control – when connected, will: Reader’s LED color indicating lock status. Reverse LED colors (Green=Open to Green=Ready) Reader’s LED color indicating Alarm BUZ Control – when connected, adding the following features: Single BEEP for Authorized – Triple Beep for Declined ID Alarm when door is held open too long (need Door Sensor) Alarm when door opened without permission (need Door Sensor) Communication: TCP/IP 100MBPS Fast Ethernet, Self Sensing Network. Native, not converted from RS485. RS-485 up to 100 Controllers on ONE bus, up to 2000 ft. distance. And used to control OLED Display readers models 6611 and 6630D Memory Capacity: up to 10,000 credentials including all rules and configurations 100,000 events log, FIFO, never full, if reach 100,000 the next event will drop the first event without any interruption to operations. 10 Emergency Cards – stored in the Processor Memory – these cards will open the door even if database destroyed.
