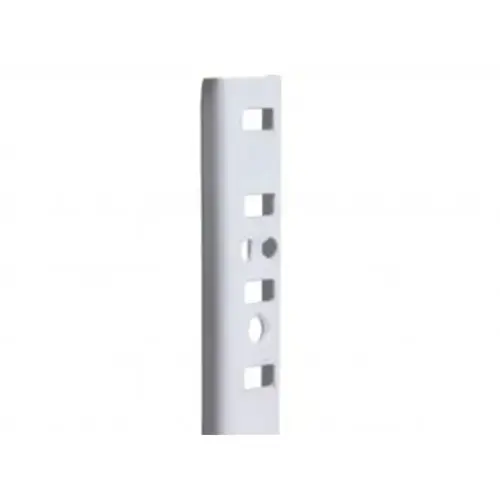

Knape & Vogt 255 WH 96 255 Mortise-Mount Pilaster Standard 500 lb, Steel, White, Wall Mounting
Item #: 255 WH 96 by Knape & Vogt Manufacturing Company
UPC #: 029274096670
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Pre-punched staple holes
- 1/2 in vertical slot adjustment
- Stamped numbers make installation easier
- Pre-drilled screw/nail holes
Mounting Type
Wall
Weight Capacity
500 lb
Material
Steel
Type
Mortise-Mount
Color
White
Specifications
23 ga Thickness
Nomenclature
255 WH 96 STNDRD PLSTR WH 96IN
Grade
BHMA Grade 1
Color Code
WH
Function
Shelf Standard
Finish Description
White
Product Length
96 Inches
Product Width
5/8 Inch
Finish Family
White
Product Material
Cold Rolled & Spring Steel
Product Depth
3/16 Inch
Product Thickness
14 & 16 Gauge
Product Type
Closet/Organization/Storage Hardware
Series
255 Series
Manufacturer Parent
Knape & Vogt Manufacturing Co
Sub-Series
KV-255-96IN
Finish
White
Material Thickness
23 gauge
Load Capacity
Up to 500 lb. per shelf
Brand
KV
Component
Pilaster
Design
Pilaster
Vertical Adjustability
1/2"
Family
Mortise-Mount Steel
Size
96"
Wall Standard Depth
3/16"
Wall Standard Width
5/8"
Product Overview
STANDARD PLSTR WH FLSH MT 96IN
Specifications:
Specifications:
Suitable for: Pilaster Shelving System
Application: For use on walls, in closets, between studs, within window frames and in bookcases, entertainment centers, kitchen cabinets and medicine cabinets
High-strength steel 96 in mortise-mount pilaster standard features 1/2 in vertical slot adjustability and countersunk nail, screw and staple holes. Numbered slots provide quick, accurate clip insertion. System holds up to 500 lb per shelf when properly installed. Can be installed on the surface or made flush with the wall or cabinet by making a dado cut.
