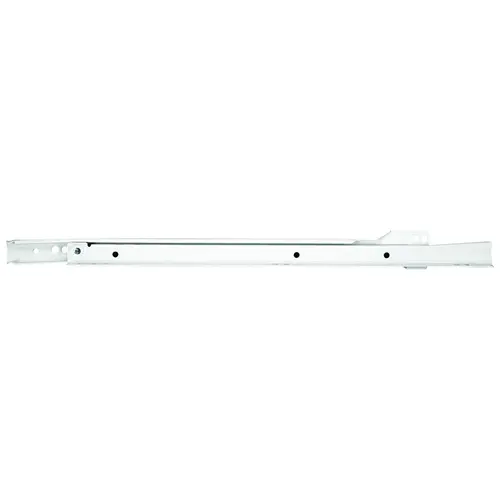

Knape & Vogt 1805HWH400 1805H WH 400 Drawer Slide, 75 lb, 400 mm L Rail, 12.5 mm W Rail Pair White

Item #: 1805HWH400 by Knape & Vogt Manufacturing Company

UPC #: 029274179502

See reviewsSee reviews
See reviews summary
In Stock

$11.06

/pair
SAVE UP TO 1.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1463 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • The 1805 self-close euro drawer slide is designed for applications that require a value priced slide that is easy to install and replace
  • 3/4 in extension epoxy-coated roller slide features a self-close design to hold drawer in a closed position
  • 32 mm hole pattern and lift-out disconnect for easy removal from the cabinet
  • Recommended for drawers up to 18 in wide
  • Hold in/anti-rebound open/close features
  • Single captive roller limits side play for improved lateral stability

Slide Length

16"

Finish

Epoxy Coated

Returnable

Yes

Height

1.39"

Defective Code

A

Color

White

Width

0.5"

Number in Package

2 pk

Slide System

Soft Close

Packaging Type

Bagged

Self Closing

Yes

Weight Load per Set

75 lb

Product Type

Drawer Slide

Material

Steel

Each Weight

1.100 LB

Velocity

C

Hazardous Material

No

Alternative UPC

029274179502

Weight Capacity

75 lb

Application

For kitchen cabinets, bathroom vanities, residential furniture

Warranty

Limited lifetime

Bearing Type

Roller

Rail Length

400 mm

Nomenclature

1805HWH400 EURO SLIDE WHT 16IN

Rail Width

12.5 mm

Length

400mm

Brand

KV

Slide Type

Roller Bearing

Bearing Type

Nylon Rollers

Mounting

Side

Slide Width

.50"/12.7mm

Slide Extension

3/4

Load Class

75 lb.

Family

1805

Slide Height

1.39"/35.5mm

Disconnect

Lift-Out

Open Close Features

Self-Close

Recommended Max Drawer Width

18"

Slide Class

Light Duty

Slide Clearance

.50" +.03" - 0"

Product Overview
SLIDE DRAWER SIDE MT WHT 16IN
Specifications:

Application: For kitchen cabinets, bathroom vanities, residential furniture

Warranty: Limited Lifetime

Includes: 6 x 7/16 in Phillips Flat Head Screw

Specially designed for use in kitchen cabinet, commercial millwork, home office and RTA furniture applications. Adaptable to face frame or 32 mm mounting. Single captive roller limits side play for improved lateral stability. Positive double out-stop. Positive in-stop. Lift-out disconnect. Four way adjustment slots. Positive lock-open position. Cabinet member side mounts. Additional rear mounting socket available for face frame applications. Drawer member fastens to either side or bottom of drawer. Height 1.4 in. Required clearance, side of 1/2 in plus 1/32 in minus 0 each side. Top of 1 in required for drawer lift out. Bottom: None drawer can rest on cabinet. Packed with screws and installation instructions. Maximum drawer width 18 in.
