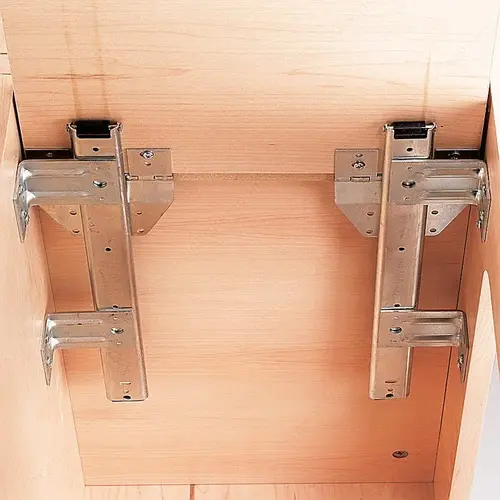

Knape & Vogt 805014314 8050 Series Hinge Door Slides Pair
Item #: 805014314 by Knape & Vogt Manufacturing Company
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Anochrome
Application
Pocket Door
Length
14 in
Load Capacity
19.8 lb
Bearing Type
Ball Bearing
Side
Pair
Partial Extension
3/4
Slide Extension
Partial Extension
Slide Mounted
Retractable, Undermounted
Product Overview
These hinged door slides support up to 20 pounds and are designed for "up-and-under" flipper door applications.
Advantages And Benefits
- One piece, non-marring roller.
- Permanently staked hinge pins.
- Triple precision steel ball-bearing movement.
- Metal ball-bearing retainer for durability and quiet operation.
- Hinge has built in stop at 90 rotation to help prevent door face from scraping underside of cabinet top.
Application
Recommended for use with "up and under" flipper-type doors. Ideal for media and entertainment centers, these slides provide full access to the front of the unit in sliding-door cabinet applications.
Important Information
- Sold in pairs.
- Thin 3/8" slide profile mounts inside cabinet.
- Rugged hinge with permanently staked pin for 3/4" door thickness.
- Mounting brackets welded to slide at factory.
Advantages And Benefits
- One piece, non-marring roller.
- Permanently staked hinge pins.
- Triple precision steel ball-bearing movement.
- Metal ball-bearing retainer for durability and quiet operation.
- Hinge has built in stop at 90 rotation to help prevent door face from scraping underside of cabinet top.
Application
Recommended for use with "up and under" flipper-type doors. Ideal for media and entertainment centers, these slides provide full access to the front of the unit in sliding-door cabinet applications.
Important Information
- Sold in pairs.
- Thin 3/8" slide profile mounts inside cabinet.
- Rugged hinge with permanently staked pin for 3/4" door thickness.
- Mounting brackets welded to slide at factory.
