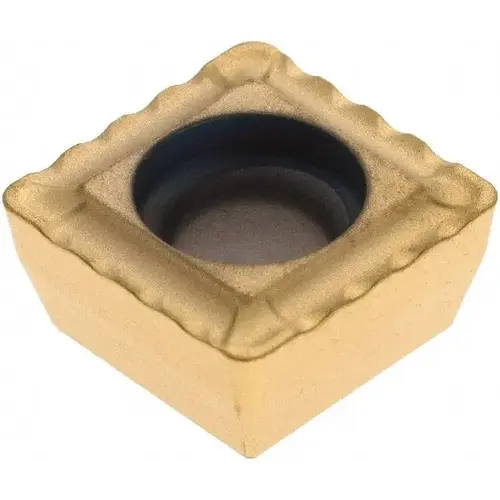

Komet 1082230913 Indexable Drill Insert: SOEXW8313 BK8425, Solid Carbide Coated
Item #: 1082230913 by Komet
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Square
Standards
ISO 14001
Chipbreaker
13
Cutting Direction
Neutral
Insert Material
Solid Carbide
Series
Unisix
Coating Process
PVD
Coating/Finish
Coated
Corner Radius (Decimal Inch)
0.0315
Primary Workpiece Material
Universal
Primary Workpiece Material Code
K
Thickness (Decimal Inch - 4 Decimals)
0.1720
Vendor Drop Ship
N
Width (mm - 2 Decimals)
9.52
Inscribed Circle (Decimal Inch)
0.3748
Insert Style
SOEX
Insert Size Code
W83
Relief Angle
8
Included Angle Degree
90
Manufacturer Grade
BK8425
Inscribed Circle (mm)
9.52
ISO 90001
2008
Corner Radius (mm)
0.80
Product Overview
Indexable Drill Insert: SOEXW8313 BK8425, Solid Carbide Coated, 9.52 mm Inscribed Circle, 0.172" Thick, 0.8 mm Corner Radius, Square
