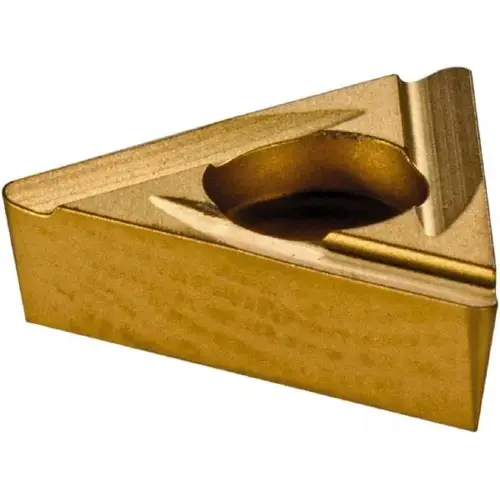

Boring Insert: TOHX090204G06 BK6425, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Komet 6260213402-XCP10 Boring Insert: TOHX090204G06 BK6425, Solid Carbide - pack of 10

Item #: 6260213402-XCP10 by Komet

Brand: Komet

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$616.07

/package
SAVE UP TO 61.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Shape

Triangle

Length (mm)

2.50

Chipbreaker

G06

Included Angle

60

Thickness (mm)

2.50

Cutting Direction

Left Hand

Insert Material

Solid Carbide

Series

TOHX

Coating Process

CVD

Coating/Finish

TiCN/Al2O3/TiN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.0984

Thickness (Decimal Inch - 4 Decimals)

0.0984

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.2205

Insert Shape

Triangle

Rake Angle

6

Insert Style

TOHX

Insert Size Code

090204

Relief Angle

8

Manufacturer Grade

BK6425

Inscribed Circle (mm)

5.60

Corner Radius (mm)

0.40

Product Overview
Boring Insert: TOHX090204G06 BK6425, Solid Carbide TiCN, Al2O3, TiN Coated, 60 degree Triangle, 0.4 mm Corner Radius, 5.6 mm Inscribed Circle, 2.5 mm Thick, 8 degree Relief Angle
