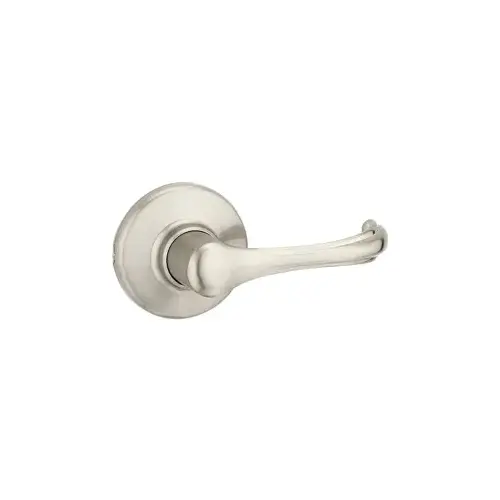

Kwikset 200DNL-15-6AL-RCS Dorian Passage Lever, 6-Way Adjustable Latch 2-3/8"-2-3/4" Backset, Grade 3, 619/US15 Satin Nickel
Item #: 200DNL-15-6AL-RCS by Kwikset
UPC #: 883351592253
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Features adjustable latch to fit all standard door preparations
- Non-handed lever design to fit both right and left handed doors
- Exposed screws on interior lever
Projection
2.1250
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 3
Lever Length
3-3/4"
Backset
2-3/8 Inch or 2-3/4 Inch
Function
200-Hall/Closet
Door Thickness
1-3/8 to 1-3/4"
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Finish Description
Satin Nickel
Product Height
2-5/8 Inches
Product Length
3.7500
Included Components
Latch; Screws; Passage Levers; Allen Wrench; Strike
Lever Style
DNL-Dorian
Rose/Escutcheon Trim
Round Rose
Product Material
Zinc
Product Type
Cylindrical Lock
Series
Kwikset Series
Box Length
6.8000
Box Width
5.7700
Box Height
2.9700
Faceplate Size
1 x 2-1/4"
Strike Type
Round Corner
Door Handing
Reversible
Strike Size
2-1/4"
Backset Size
2-3/8 x 2-3/4"
Key Type
Non-Keyed
Security Grade
3
Cross Bore Diameter
2-1/8"
Nomenclature
200DNL15RCALRCS DORN PASS SNKL
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Projection Size
2-1/8"
Dimensions
2-5/8 in Dia x 2-1/8 in H
Width
5.78"
Warranty
Lifetime Mechanical and Finish
Color Code
619/US15
Application
Hallway Door; Closet Door
Bolt Throw
1/2 Inch
ANSI Function
F75
Latch Type
6-Way Adjustable
ADA Compliant
YES
Finish Family
Satin Nickel
Standards
ADA/ANSI A117.1; ANSI/BHMA A156.2; 4.13.9 ADA Requirements
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 1"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Projection
2-1/8 Inch
Features
Easily Installs in Minutes With Just a Screwdriver; Microban Antimicrobial Product Protection Keeps Door Hardware 99.9% Cleaner Than Unprotected Surfaces
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
3.75 Inch
Box Dimensions (L x W x H)
2.97x5.77x6.8
Lever Style Family
Straight Lever
Sub-Series
RL_Lever_Locksets_kwikset_122
Handing
Field Reversible
Cylinder Included
No
Alternate Part Number-1
138915
Latch Bolt Type
Springlatch
Knob/Lever Design
Dorian
Rose/Escutcheon Size
2-5/8"
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Round Corner, Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
1-3/4"
Knob/Lever Style
Lever
Rose/Base Dimensions
2-5/8"
Cylinder Type
5-Pin
Lock Type
Non-Locking
Commercial/Residential
Residential
Material
Zinc
Throw Length
1/2"
Collection
Dorian
Package Height
3"
Package Length
6.8"
Package Width
5.8"
Item Weight
1.6 lbs
Style
Dorian
Latch
Adjustable Latch
Product Overview
DORIAN PASSAGE SATIN NICKEL BX
Specifications:
Specifications:
Application: For use on interior doors requiring no locking functionality, such as hallway or closet doors
Warranty: Lifetime
Kwikset Passage Door Lever, Lock Type: Non-Locking, Satin Nickel, Zinc, Commercial/Residential: Residential, Door Handing: Reversible, Security Grade: 3, Cylinder Type: 5-Pin, Lever Length: 3-3/4 in, Key Type: Non-Keyed, Cross Bore Diameter: 2-1/8 in, Door Thickness: 1-3/8 to 1-3/4 in, Edge Bore Diameter: 1 in, Faceplate Size: 1 x 2-1/4 in, Throw Length: 1/2 in, Projection Size: 2-1/8 in, Strike Size: 2-1/4 in, Strike Type: Round Corner, Rose/Base Dimensions: 2-5/8 in
