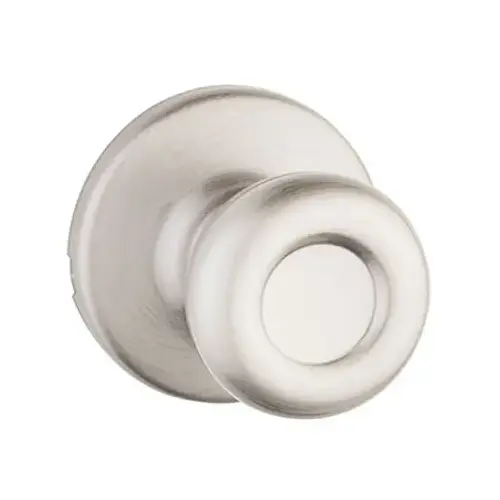

Kwikset 200T-15-6AL-RCS Tylo Passage Knob Satin Nickel
Item #: 200T-15-6AL-RCS by Kwikset
UPC #: 883351635677
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Assembled Height (in.)
2.625
Assembled Width (in.)
2.625
Included
Hardware, Installation Instructions
Door Locks & Knobs Product Type
Passage Knobs
Knob Diameter (in.)
1.875
General Material
Metal
Hardware Finish Family
Nickel
Assembled Depth (in.)
2.50
Lock Type
Unkeyed
Commercial/Residential
Residential
Certifications and Listings
No Certifications or Listings
Pack Size
1
Security/ANSI Grade
ANSI Grade 3 (Good)
Strike width (in.)
1.75
Manufacturer Warranty
Lifetime mechanical and finish warranty
Backset size (in.)
Adjustable
Projection
2.5000
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 3
Backset
2-3/8 Inch or 2-3/4 Inch
Function
200-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
1.8800
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Finish Description
Satin Nickel
Product Height
2-5/8 Inch
Product Length
2.6300
Included Components
Passage Knobs; Roses; Latch; Strike; Mounting Hardware
Knob style
T-Tylo
Rose/Escutcheon Trim
Round Rose
Product Material
Zinc
Product Type
Cylindrical Lock
Series
Kwikset Series
Box Length
7.3600
Box Width
3.3000
Box Height
2.7800
UNSPSC
46171500
Warranty
Lifetime Limited Mechanical/Finish
Color Code
619/US15
Application
Interior Doors Requiring No Locking Functionality
Bolt Throw
1/2"
Strike Type
Round
Finish Family
Satin Nickel
ANSI Function
F75
Latch Type
6-Way Adjustable
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA
Faceplate Dimension
1" x 2-1/4"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2-19/32 Inch
Features
Universal Handing; Easily Installs in Minutes With Just a Screwdriver; Latch Has 3 Interchangeable Faceplates
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
2.78x3.3x7.36
Sub-Series
RL_Knob_Locksets_Kwikset_7
Height
2.78
Length
7.36
Width
3.30
Hazardous Material
No
Country Origin Code
MX
Product Overview
Tylo KnobFeaturing SmartKey
Great hardware can transform the look of your home. With a variety of styles, functions and finishes, Kwikset's knobs are sure to define your decor from the moment someone walks into your home.
Features:- Features SmartKey® Re-key Technologywith BumpGuard™ Protection
- ANSI/BHMA Grade 3 Certified Quality & Security
- Lifetime Mechanical Warranty
- Cross Bore 2-1/8".
- Edge Bore 1".
- Adjustable 2-3/8" or 2-3/4".
- 1-3/8" to 1-3/4" standard, 2 1/4" doors optional on 200 and 400 functions only
- SmartKey or Traditional 5-pin Pin & Tumbler
- 1" x 2-1/4" Specify round corner or square corner. Also available as drive-in latch.
- 2-1/4" full lip. Specify round corner or square corner. Other options available.
- 1/2" throw.
- Reversible for right or left hand doors.
- A156.2 Grade
- (all functions except 488)
- Both knobs always free.
- Both knobs locked or unlocked by turnbutton inside. Unlocked by emergency key outside
- Both knobs locked or unlocked by key outside or turnbutton inside.
- Outside locked or unlocked by key outside or turn button inside. Inside always free.
- For doors where only a pull is required. No operation.
- Polished Brass - 3
- Antique Brass - 5
- Satin Nickel - 15
- Polished Chrome - 26
- Satin Chrome - 26D
