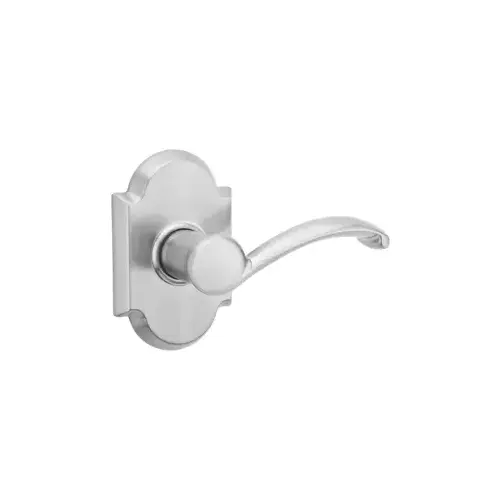

Kwikset 720AUL-15-6AL-RCS Austin Passage Lever Satin Nickel
Item #: 720AUL-15-6AL-RCS by Kwikset
UPC #: 00883351449557
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.6667
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 2
Lever Length
4.1875
Backset
2-3/8 Inch or 2-3/4 Inch
Function
720-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Finish Description
Satin Nickel
Product Height
4-7/16 Inches
Product Length
4.1250
Included Components
Passage Levers; Roses; Latch; Strike; Mounting Hardware
Lever Style
ADL-Ashfield
Rose/Escutcheon Trim
Arch Rose
Product Material
Zinc
Product Type
Cylindrical Lock
Series
Signature Series
Box Length
7.8800
Box Width
6.1300
Box Height
3.1900
Application
Hallway Door; Closet Door
Clearance
true
Warranty
Lifetime Mechanical and Finish
Color Code
619/US15
Bolt Throw
1/2 Inch
ANSI Function
F75
Latch Type
6-Way Adjustable
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Nickel
Standards
ADA/ANSI A117.1; ANSI/BHMA; Meets or Exceeds UL
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 1"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Projection
2.6667 Inch
Features
Easily Installs in Minutes With Just a Screwdriver; Fully Reversible Lever, can be Installed on Both Right Handed and Left Handed Doors; Microban Antimicrobial Product Protection Keeps Door Hardware 99.9% Cleaner Than Unprotected Surfaces
Strike Size
2-1/4 Inch
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
4.125 Inch
Box Dimensions (L x W x H)
3.19x6.13x7.88
Clearance Date
221222
Sub-Series
RL_Lever_Locksets_kwikset_170
Handing
Field Reversible
Cylinder Included
No
Alternate Part Number-1
148417
Finish code
US15
Latch Bolt Type
Springlatch
Knob/Lever Design
Austin Lever
Rose/Escutcheon Size
2-5/8"
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Latch Bolt Face Type
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
1-3/4"
Height
3.15
Length
7.48
Width
5.91
Product Overview
Austin LeverFeaturing SmartKey
Simple yet rugged, Austin’s rustic style brings a new level of charm and appeal to any space, whether in the city or country.
The Austin family includes a handleset, deadbolt and lever.
Features:- Decorative Deadbolt Swing Cover on Handleset
- SmartKey® Re-key Technology with BumpGuard™ Protection
- ANSI/BHMA Grade 2 Security
- Cross Bore 2-1/8"
- Edge Bore 1"
- Adjustable 2-3/8" or 2-3/4"
- 1-3/8" to 1-3/4" standard
- SmartKey
- 1" x 2-1/4". Specify round corner or square corner or drive-in latch.
- 2-1/4" full lip.
- Specify round corner or square corner.
- Other options available.
- 1/2" throw.
- Reversible for right or left hand doors.
- 720 function satisfies section 4.13.9 ADA requirements.
- 11P - Venetian Bronze
- 15 - Satin Nickel
